Mn2SiO4 (#0.220)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

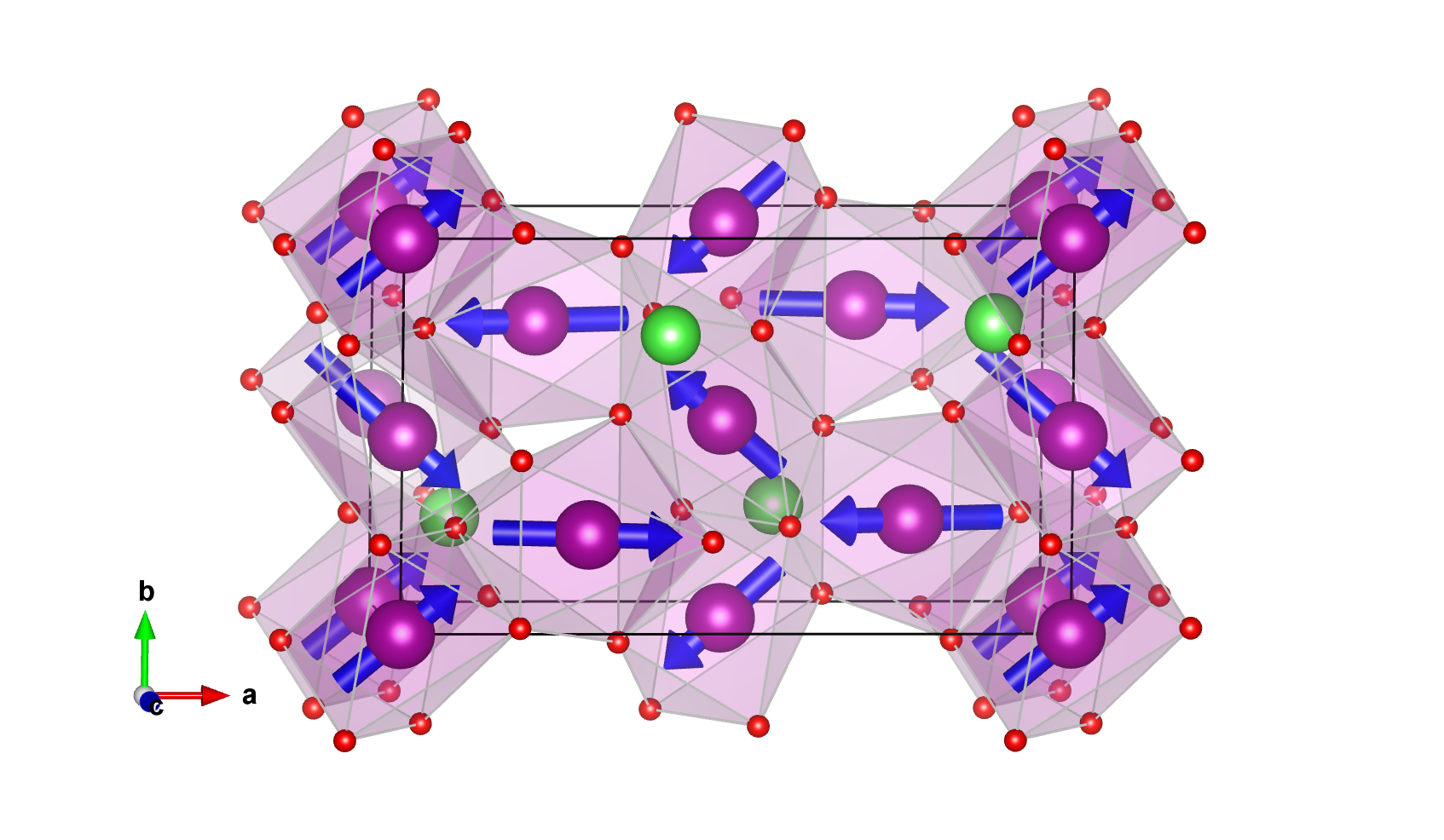

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: W. Lottermoser and H. Fuess, Physica Status Solidi (a) (1988) 109 589-595.
DOI: 10.1002/pssa.2211090226
Atomic positions from: ICSD #88026

Parent space group (paramagnetic phase): Pnma (#62)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 47.1 K
Experiment Temperature: 2 K

Lattice parameters of the magnetic unit cell:
10.59800 6.25700 4.90100 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pn'm'a (#62.446) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm (8.4.27)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Mn1Mn0.000000.000000.000004mx,my,mz2.852.50.653.85
Mn2Mn0.280000.250000.987004mx,0,mz4.540.01.124.68

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mGM2+ 1 1 primary 5
