  Enter the label of the structure:

La0.5Sr0.5FeO2.5F0.5 (#0.34)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...


Magnetic structure with all atoms

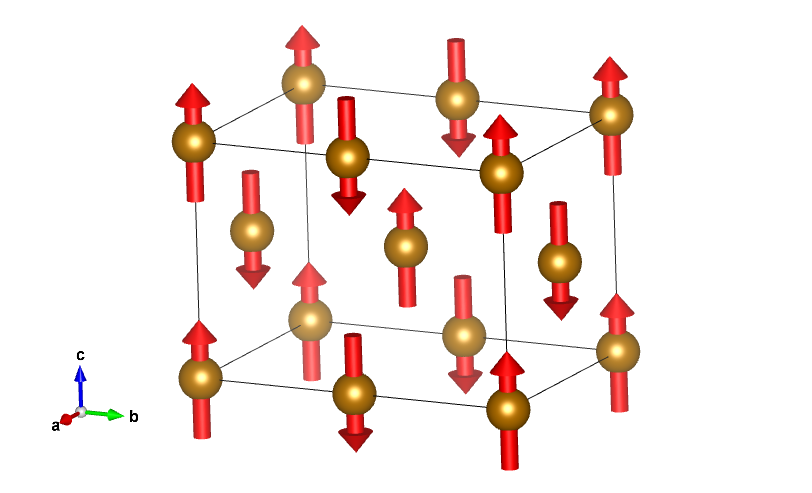

Magnetic structure with only magnetic atoms


Reference: O. Clemens, F.J. Berry, A.J. Wright, K.S. Knight, J. Perez-Mato, J. Igartua and P.R. Slater, Journal of Solid State Chemistry (2013) 206 158-169.
DOI: 10.1016/j.jssc.2013.08.013
Atomic positions from: same reference

Parent space group (paramagnetic phase): Pnma (#062)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 700 K
Experiment Temperature: 290 K

Lattice parameters of the magnetic unit cell:
5.55750 7.87310 5.58870 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pn'ma' (#62.448) (standard setting)
    [View symmetry operations]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm (8.4.27)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
FeFe0.000000.000000.000004mx,my,mz0.00.03.53.50

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepaction
mGM4+ 1 1 primary


Comments:
Comments (symmetry):
