SrCuTe2O6 (#0.440)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

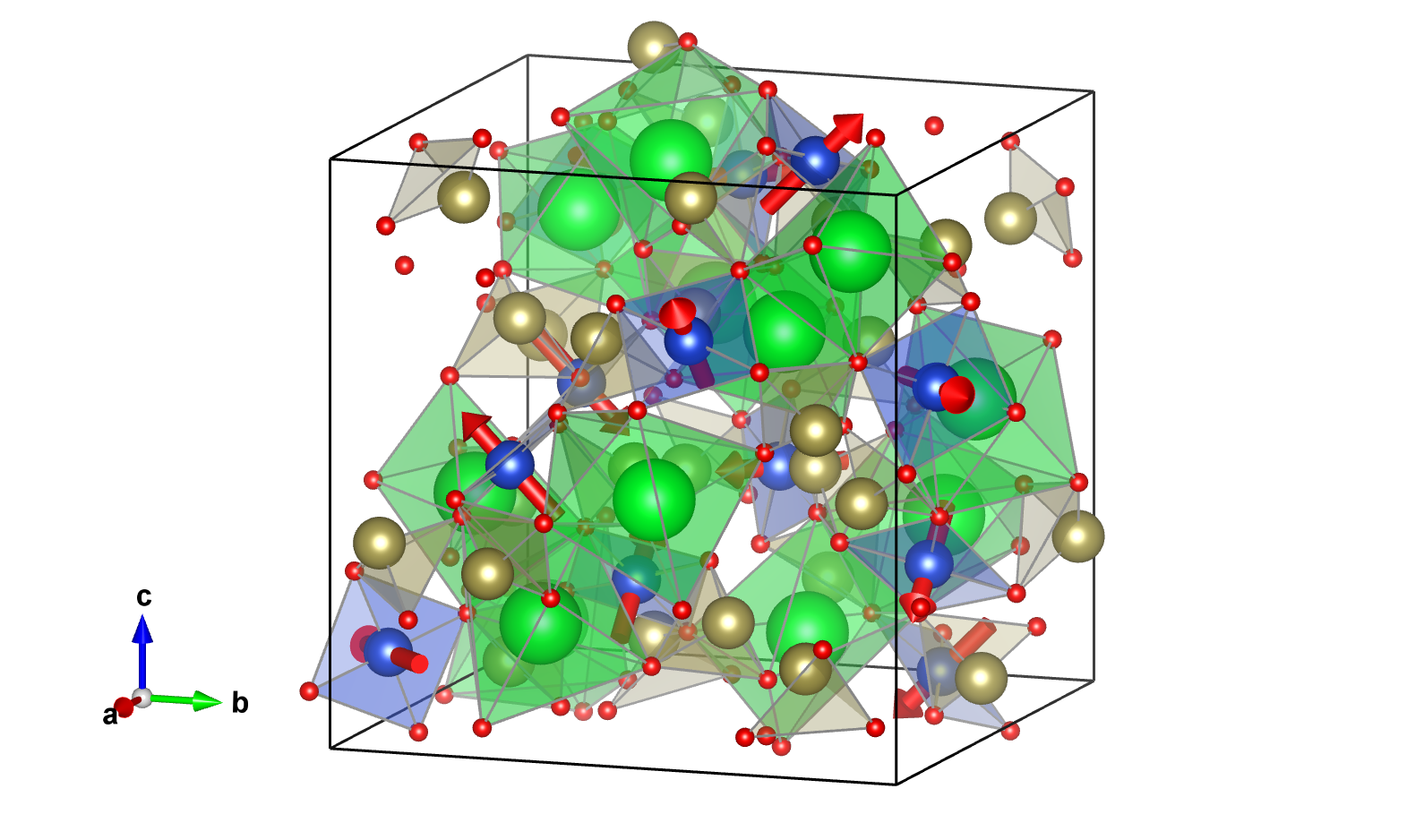

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: P. Saeaun, Y. Zhao, P. Piyawongwatthana, T.J. Sato, F.C. Chou, M. Avdeev, G. Gitgeatpong and K. Matan, Physical Review B (2020) 102 134407.
DOI: 10.1103/physrevb.102.134407
Atomic positions from: same reference

Parent space group (paramagnetic phase): P4132 (#213)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 5.25(5) K
Experiment Temperature: 1.5 K

Lattice parameters of the magnetic unit cell:
12.4321 12.4321 12.4321 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P4132 (#213.63) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 432.1 (30.1.112)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Cu1Cu0.476000.875000.2740012mx,0,-mx0.370.0-0.370.52

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mGM1 1 1 primary 1


Comments:
Comments (symmetry):
