KFeSe2 (#0.637)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...


Magnetic structure with all atoms

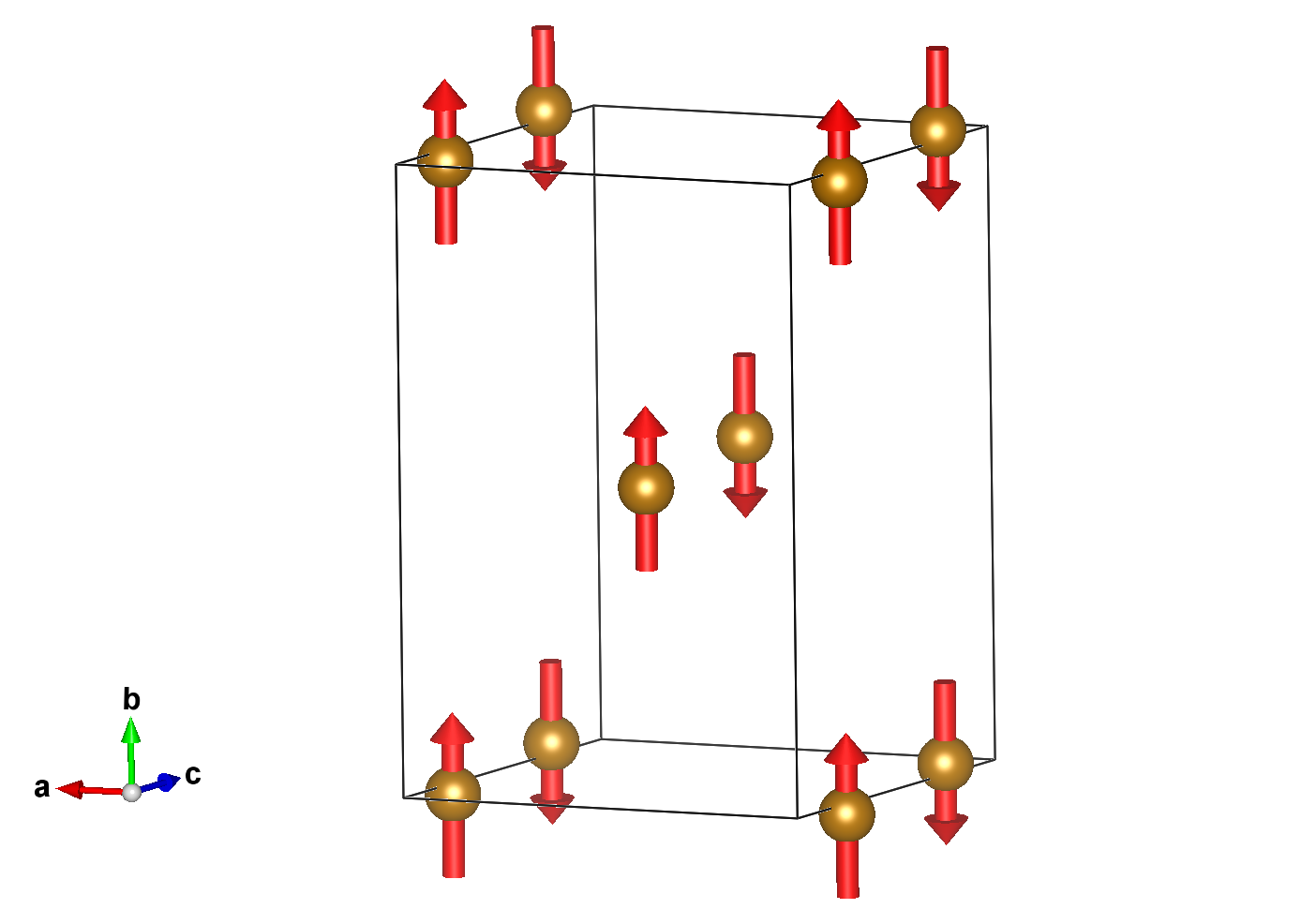

Magnetic structure with only magnetic atoms


Reference: W. Bronger, A. Kyas, P. Muller, JOURNAL OF SOLID STATE CHEMISTRY (1987) 70 262 - 270
DOI: 10.1016/0022-4596(87)90065-X
Atomic positions from: same reference

Parent space group (paramagnetic phase): C2/c (#15)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 310(1) K
Experiment Temperature: 15 K

Lattice parameters of the magnetic unit cell:
7.278(2) 11.611(4) 5.6lS(2) 90.00 113.7(1) 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: C2/c' (#15.88) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 2/m' (5.4.15)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Fe1Fe0.00000-0.017(2)0.2500010,my,00.03.0(2)0.03.00

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mGM1- 1 1 primary 1


Comments:
Comments (symmetry):
