Cs2CoU3F16 (#1.0.19)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...


Magnetic structure with all atoms

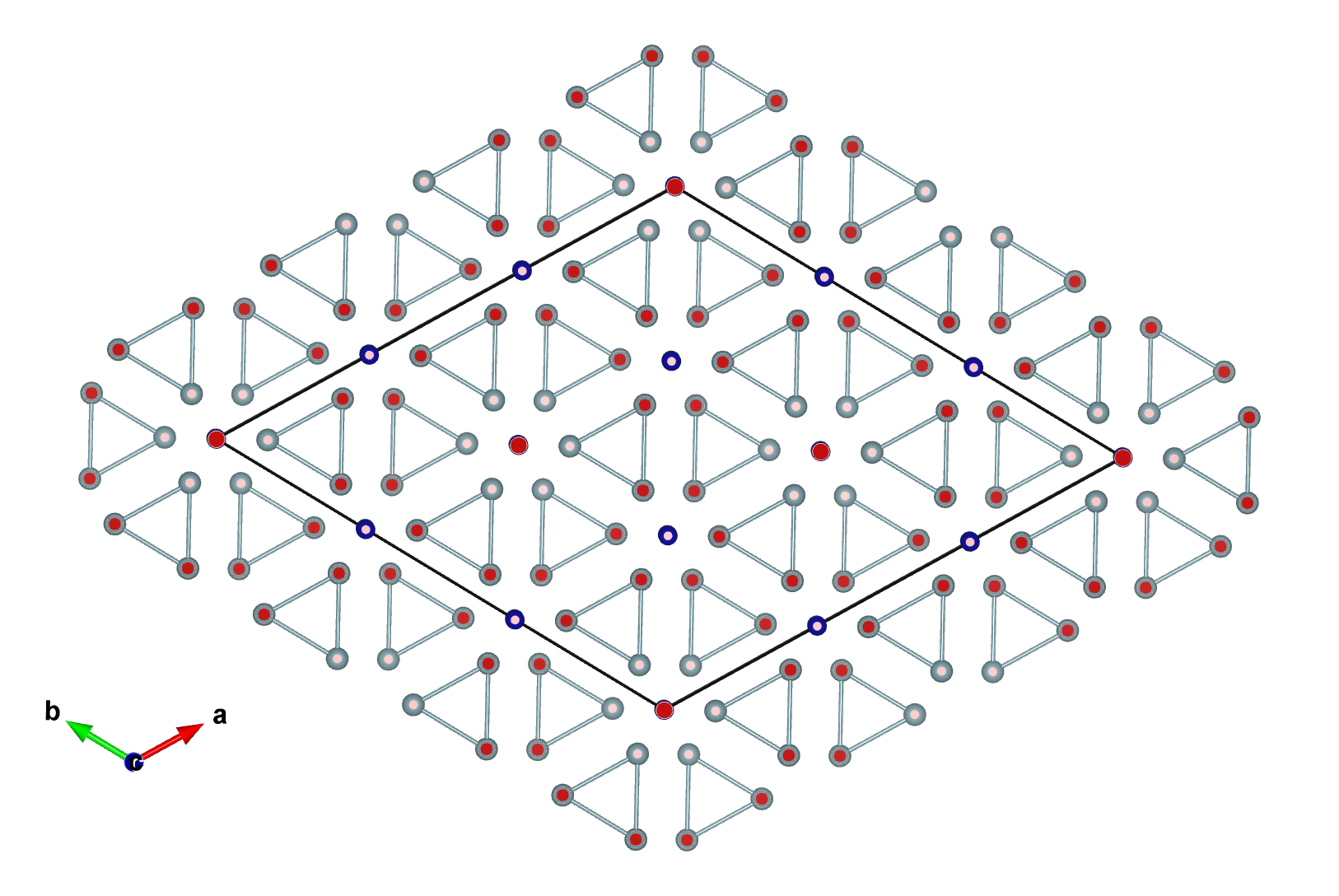

Magnetic structure with only magnetic atoms


Reference: V.V. Klepov, K.A. Pace, S. Calder, J.B. Felder and H.-C. zur Loye, Journal of the American Chemical Society (2019) 141 3838-3842.
DOI: 10.1021/jacs.9b00345
Atomic positions from: same reference

Parent space group (paramagnetic phase): P63/mmc (#194)
Propagation vector(s):
k1 (1/3, 1/3, 0)
k2 (0, 0, 0)

Transition Temperature: 3.5 K
Experiment Temperature: 1.5 K

Lattice parameters of the magnetic unit cell:
23.96730 23.96730 13.00600 90.00 90.00 120.00
Transformation from parent structure: (3a,3b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P63/mc'm' (#193.260) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (1/3a-1/3b,1/3a+2/3b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 6/mm'm' (27.6.105)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
U1_1U0.276660.553320.25000180,0,mz0.00.0-0.91(6)0.91
U1_2U0.276660.886650.25000360,0,mz0.00.00.910.91
Co1_1Co0.000000.000000.0000060,0,mz0.00.01.70(10)1.70
Co1_2Co0.000000.333330.00000120,0,mz0.00.0-1.71.70

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modespresence
mK4 2 1 special primary 2
mGM2+ 1 1 secondary 2 yes


Comments:
Comments (symmetry):
