URu0.96Rh0.04Si2 (#1.0.2)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


Magnetic structure with all atoms

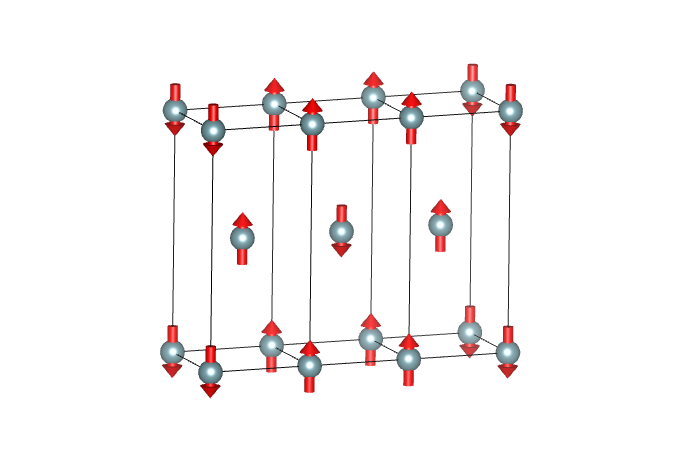

Magnetic structure with only magnetic atoms

Reference: K. Kuwahara, S. Yoshii, H. Nojiri, D. Aoki, W. Knafo, F. Duc, X. Fabreges, G.W. Scheerer, P. Frings, G.L.J.A. Rikken, F. Bourdarot, L.P. Regnault and J. Flouquet, Physical Review Letters (2013) 110.
DOI: 10.1103/physrevlett.110.216406
Atomic positions from: ICSD #656245

Parent space group (paramagnetic phase): I4/mmm (#139)
Propagation vector(s):
k1 (2/3, 0, 0)
k2 (0, 0, 0)

Lattice parameters of the magnetic unit cell:
12.4260 4.1420 9.6240 90.0000 90.0000 90.0000
Transformation from parent structure: (3a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Im'm'm (#71.536) (standard setting)
    [View symmetry operations]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm (8.4.27)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|

    [Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:
Irrep decomposition via

labeldim. small irrepdim. full irrepaction
mSM4(k1) 1 4 primary
mGM3+(k2) 1 1 secondary

Comments (symmetry):
