Ca4IrO6 (#1.114)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

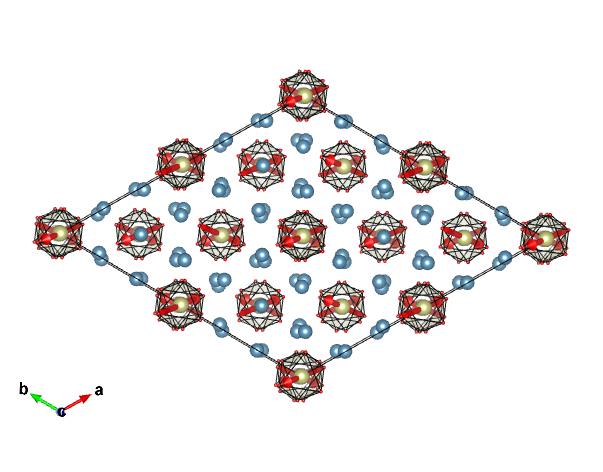

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: S. Calder, G.-X. Cao, S. Okamoto, J.W. Kim, V.R. Cooper, Z. Gai, B.C. Sales, M.D. Lumsden, D. Mandrus and A.D. Christianson, Physical Review B (2014) 89 081104.
DOI: 10.1103/physrevb.89.081104
Atomic positions from: ICSD #280873

Parent space group (paramagnetic phase): R-3c (#167)
Propagation vector: k1 (1/2, 1/2, 0)

Transition Temperature: 12 K

Lattice parameters of the magnetic unit cell:
18.60600 18.60600 11.08640 90.00 90.00 120.00
Transformation from parent structure: (2a,2b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: PC2/c (#13.74) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (1/6a-1/6b+2/3c,1/2a+1/2b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 2/m.1' (5.2.13)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Ir1Ir0.000000.000000.0000024mx,my,mz-0.240.040.330.42

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mF1+ 1 3 primary 3


Comments:
Comments (symmetry):
