Cu1.07Mn0.93O2 (#1.178)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

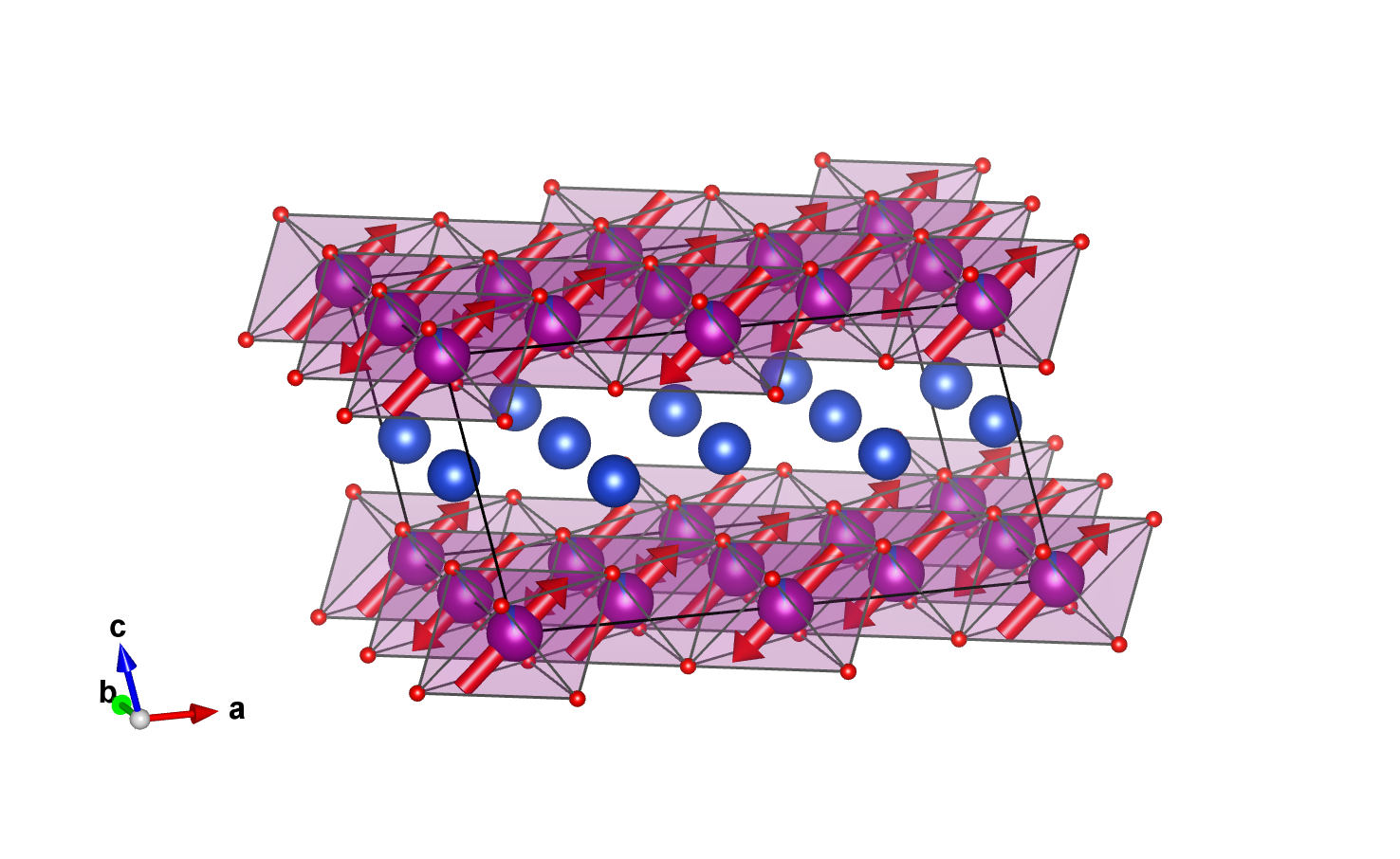

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: V.O. Garlea, A.T. Savici and R. Jin, Physical Review B (2011) 83 172407.
DOI: 10.1103/physrevb.83.172407
Atomic positions from: same reference

Parent space group (paramagnetic phase): C2/m (#12)
Propagation vector: k1 (-1/2, 1/2, 0)

Transition Temperature: 52 K

Lattice parameters of the magnetic unit cell:
11.0867 5.7640 5.8955 90.00 104.2968 90.00
Transformation from parent structure: (2a,2b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: PS-1 (#2.7) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (c,1/4a+1/4b,-1/2a+1/2b;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: -1.1' (2.2.4)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzOccupancyMultiplicitySymmetry constraints on MMxMyMz|M|
Mn1Mn0.000000.000000.000000.932(5)8mx,my,mz1.8(2)0.01.4(3)1.99

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mV1- 1 2 primary 3


Comments:
Comments (symmetry):
