Fe0.25TiSe2 (#1.270)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)

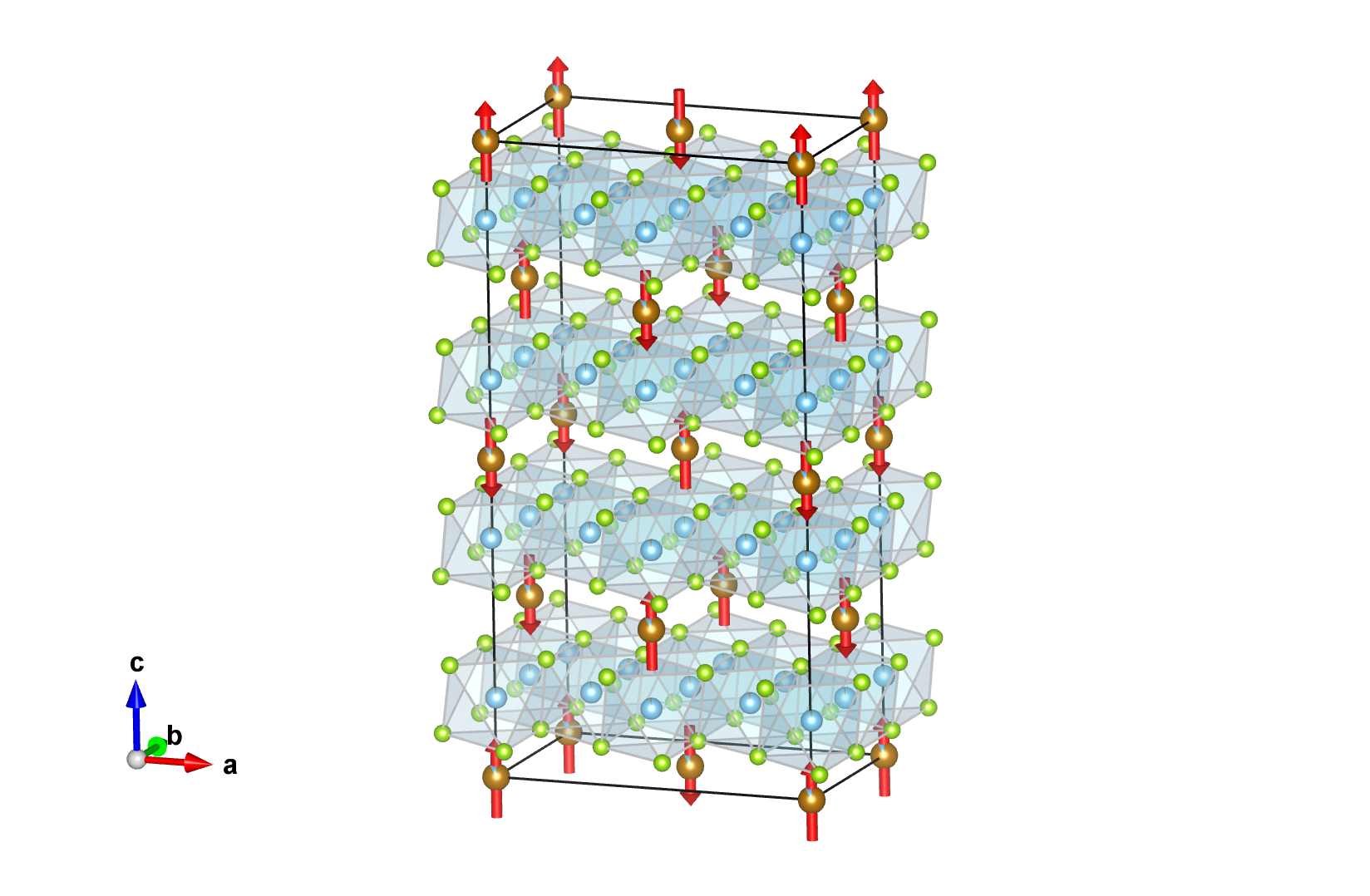

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms

Reference: G. Calvarin, J. Gavarri, M.A. Buhannic, P. Colombet and M. Danot, Revue de Physique Appliquee (1987) 22 1131-1138.
DOI: 10.1051/rphysap:0198700220100113100
Atomic positions from: ICSD #68276

Parent space group (paramagnetic phase): F2/m (#12) (non-standard)
Transformation to a standard setting: (c,-b,1/2a-1/2c;0,0,0)
    [View matrix form]
Propagation vector: k1 (1, 0, 1/2)

Transition Temperature: 75 K
Experiment Temperature: 2 K

Lattice parameters of the magnetic unit cell:
12.32290 7.13250 23.78780 90.00 89.67 90.00
Transformation from parent structure: (a,b,2c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Cc2/c (#15.90) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a+c,b,c;1/4,0,1/8)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 2/m1' (5.2.13)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

LabelAtom typexyzOccupancyMultiplicitySymmetry constraints on MMxMyMz|M|

    [Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:
Irrep decomposition via

labeldim. full irrepdim. small irrepdirectionactionnumber of modes
mB2 2 1 special primary 2

Comments (symmetry):
