TbCu2Si2 (#1.365)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

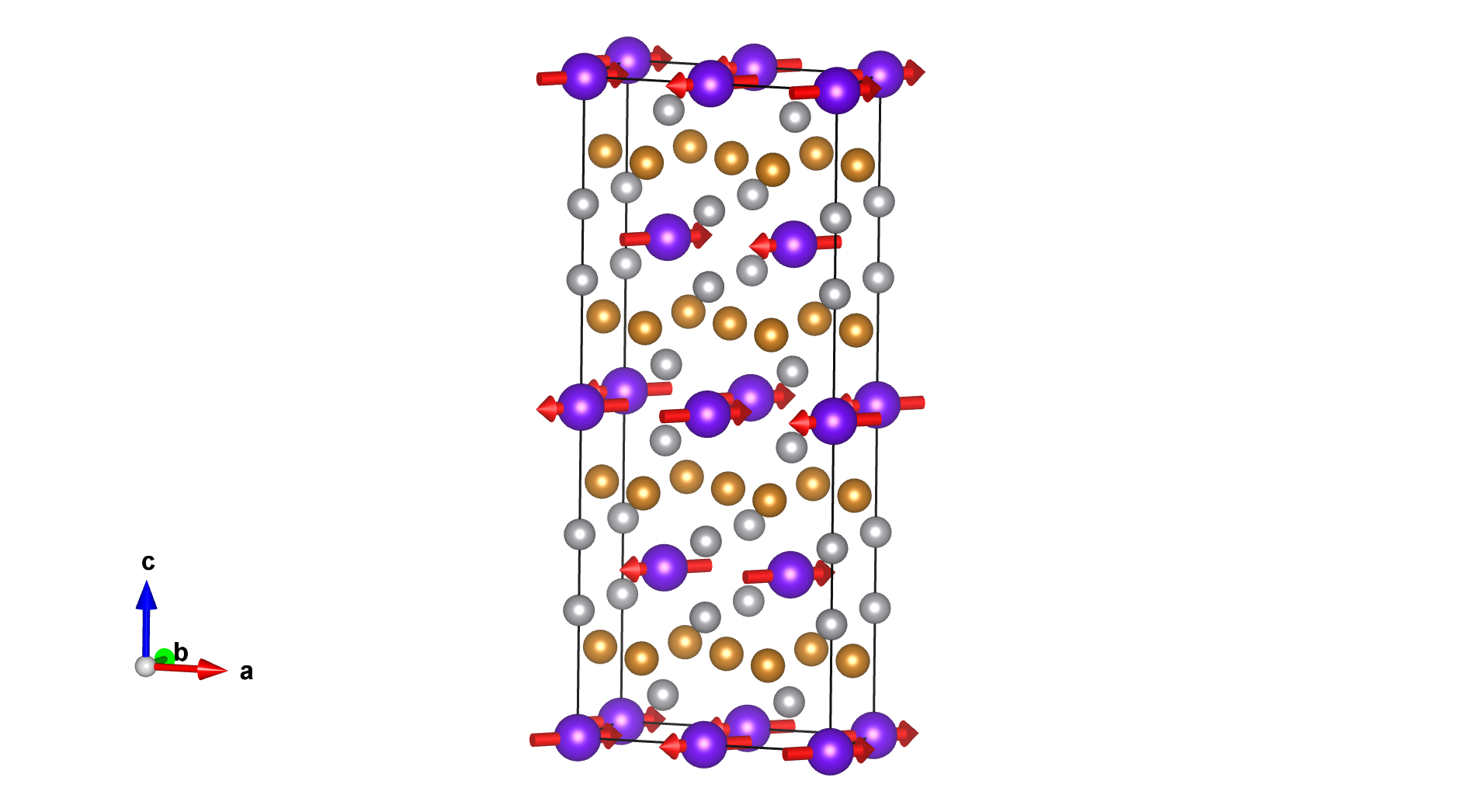

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: H. Pinto, M. Melamud, M. Kuznietz and H. Shaked, Physical Review B (1985) 31 508-515.
DOI: 10.1103/physrevb.31.508
Atomic positions from: ICSD #629186

Parent space group (paramagnetic phase): I4/mmm (#139)
Propagation vector: k1 (1/2, 0, 1/2)

Transition Temperature: 13 K
Experiment Temperature: 4.2 K

Lattice parameters of the magnetic unit cell:
7.96800 3.98400 19.89400 90.00 90.00 90.00
Transformation from parent structure: (2a,b,2c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: PS-1 (#2.7) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (1/4a+1/2b-1/4c,-1/4a+1/2b+1/4c,1/2a-b+1/2c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: -1.1' (2.2.4)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Tb1Tb0.000000.000000.000008mx,my,mz6.086.080.08.60

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mN1+ 1 1 primary 1
mN2+ 1 1 primary 2


Comments:
Comments (symmetry):
