GdAgSn (#1.505)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...


Magnetic structure with all atoms

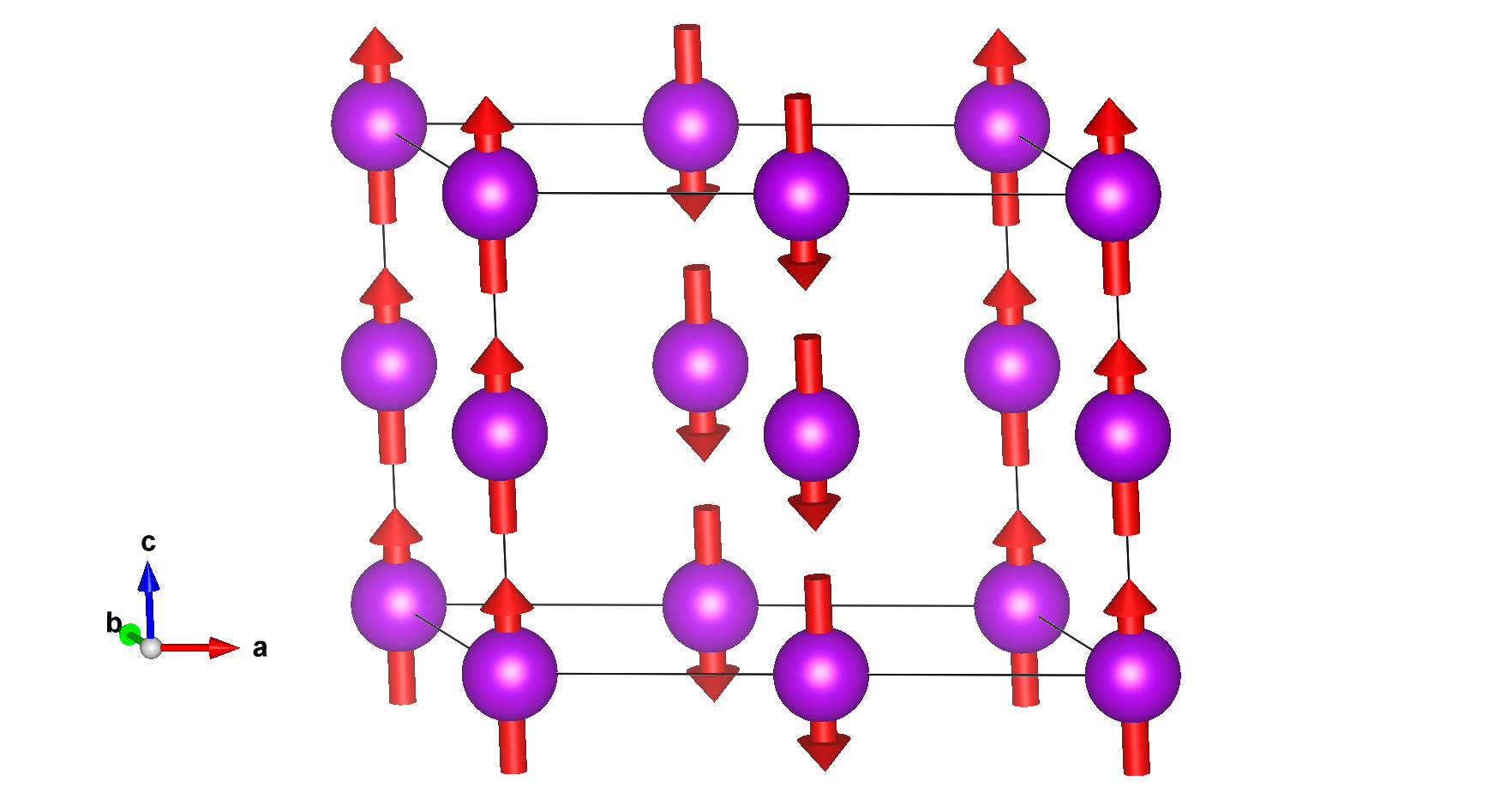

Magnetic structure with only magnetic atoms


Reference: H. Ryan, J. M. Cadogan, V. I. Krylov, A. Legros, R. Rejali, C. D. Boyer, J. Phys.: Condens. Matter (2017) 29 495804
DOI: 10.1088/1361-648X/aa977a
Atomic positions from: ICSD #234582

Parent space group (paramagnetic phase): P63mc (#186)
Propagation vector: k1 (1/2, 0, 0)

Transition Temperature: 34 K
Experiment Temperature: 4 K

Lattice parameters of the magnetic unit cell:
9.416 4.708(4) 7.395(7) 90.00 90.00 120.00
Transformation from parent structure: (2a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: PCna21 (#33.154) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a+b,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: mm2.1' (7.2.21)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Gd1Gd0.000000.000000.00042my,my,mz0.00.07.2(2)7.20

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mM2 1 3 primary 2


Comments:
Comments (symmetry):
