Ba2YbRuO6 (#1.566)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

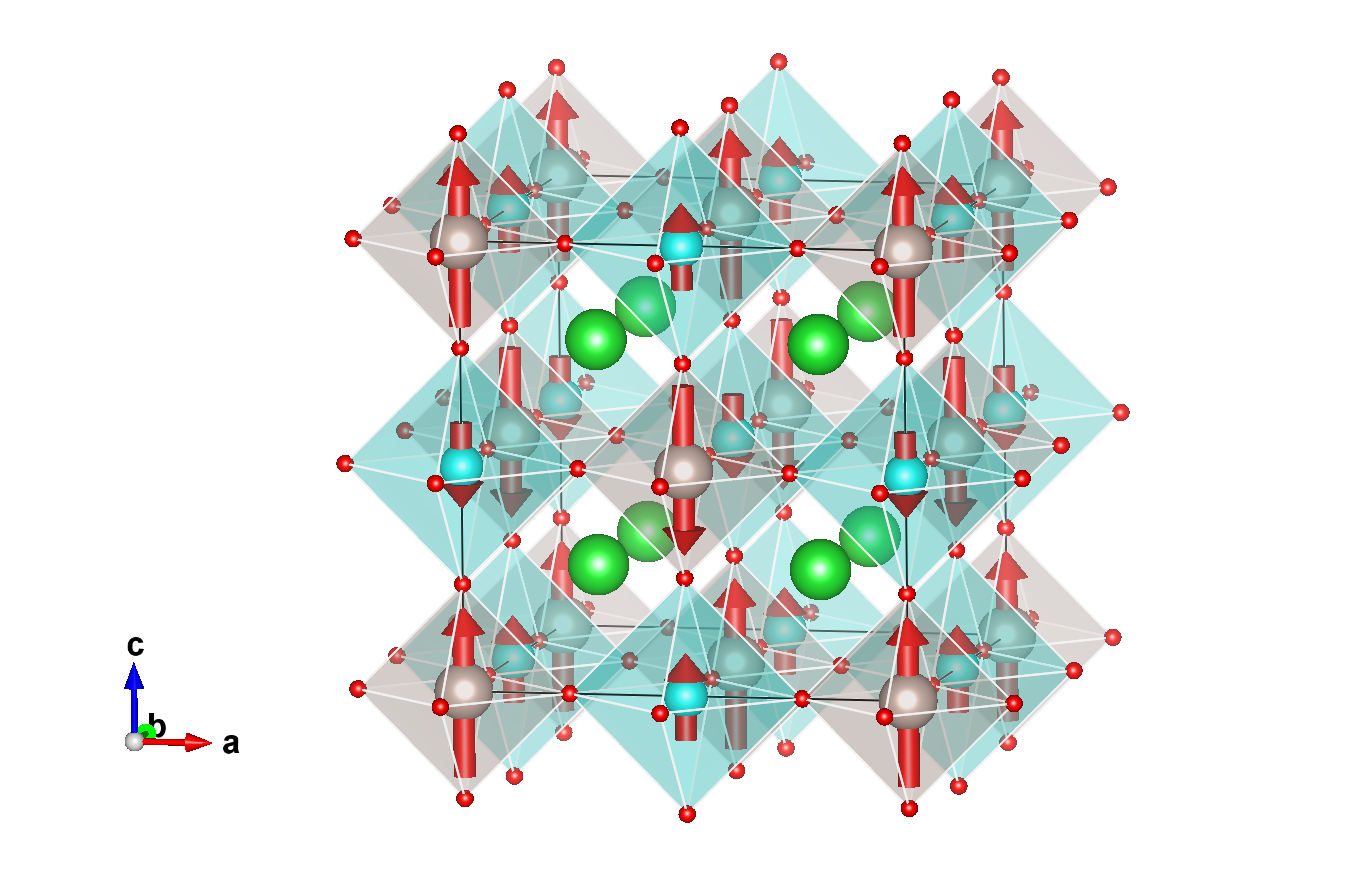

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: Y. Doi, Y. Hinatsu, A. Nakamura, Y. Ishii, Y. Morii, J. Mater. Chem. (2003) 13 1758 - 1763
DOI: 10.1039/b301935g
Atomic positions from: ICSD #55714

Parent space group (paramagnetic phase): Fm-3m (#225)
Propagation vector: k1 (0, 0, 1)

Transition Temperature: 48 K
Experiment Temperature: 10 K

Lattice parameters of the magnetic unit cell:
8.27530 8.27530 8.27530 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: PI4/mnc (#128.410) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (1/2a+1/2b,-1/2a+1/2b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 4/mmm.1' (15.2.54)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Yb1Yb0.500000.000000.0000040,0,mz0.00.01.00(3)1.00
Ru1Ru0.000000.000000.0000040,0,mz0.00.02.57(6)2.57

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mX3+ 1 3 primary 2


Comments:
Comments (symmetry):
