LuMn2Ge2 (#1.689)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...


Magnetic structure with all atoms

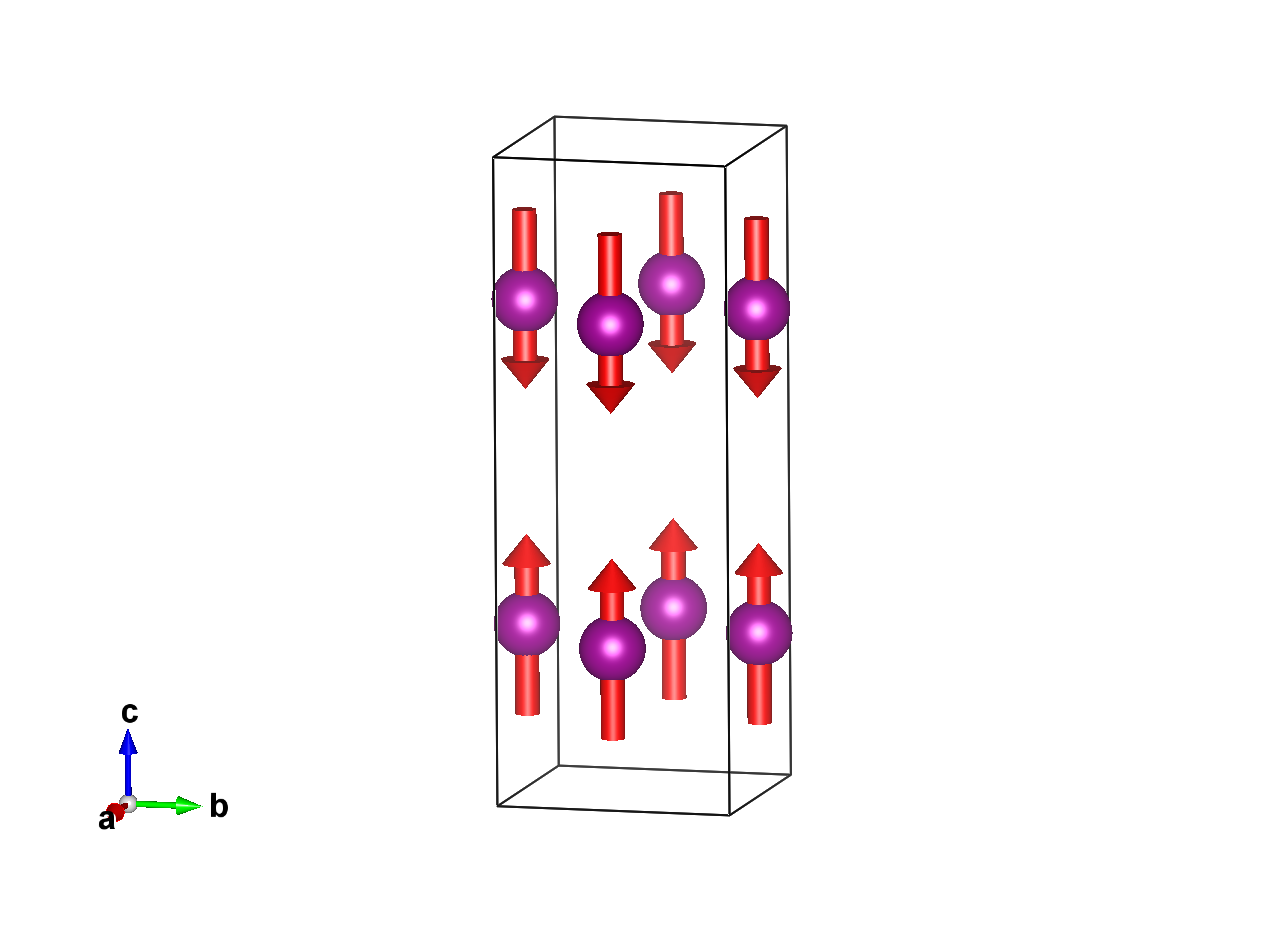

Magnetic structure with only magnetic atoms


Reference: G. Venturini, B. Malaman, E. Ressouche, Journal of Alloys and Compounds (1996) 240 139 - 150
DOI: 10.1016/0925-8388(96)02272-4
Atomic positions from: ICSD #107040

Parent space group (paramagnetic phase): I4/mmm (#139)
Propagation vector: k1 (1, 1, 1)

Transition Temperature: 508 K
Experiment Temperature: 2 K

Lattice parameters of the magnetic unit cell:
3.9388 3.9388 10.809 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: PI4/nnc (#126.386) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;1/4,1/4,1/4)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 4/mmm.1' (15.2.54)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Mn1Mn0.000000.500000.2500040,0,mz0.00.02.32(14)2.32

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. small irrepdim. full irrepactionnumber of modes
mM1- 1 1 primary 1


Comments:
Comments (symmetry):
