HoInCu4 (#1.700)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

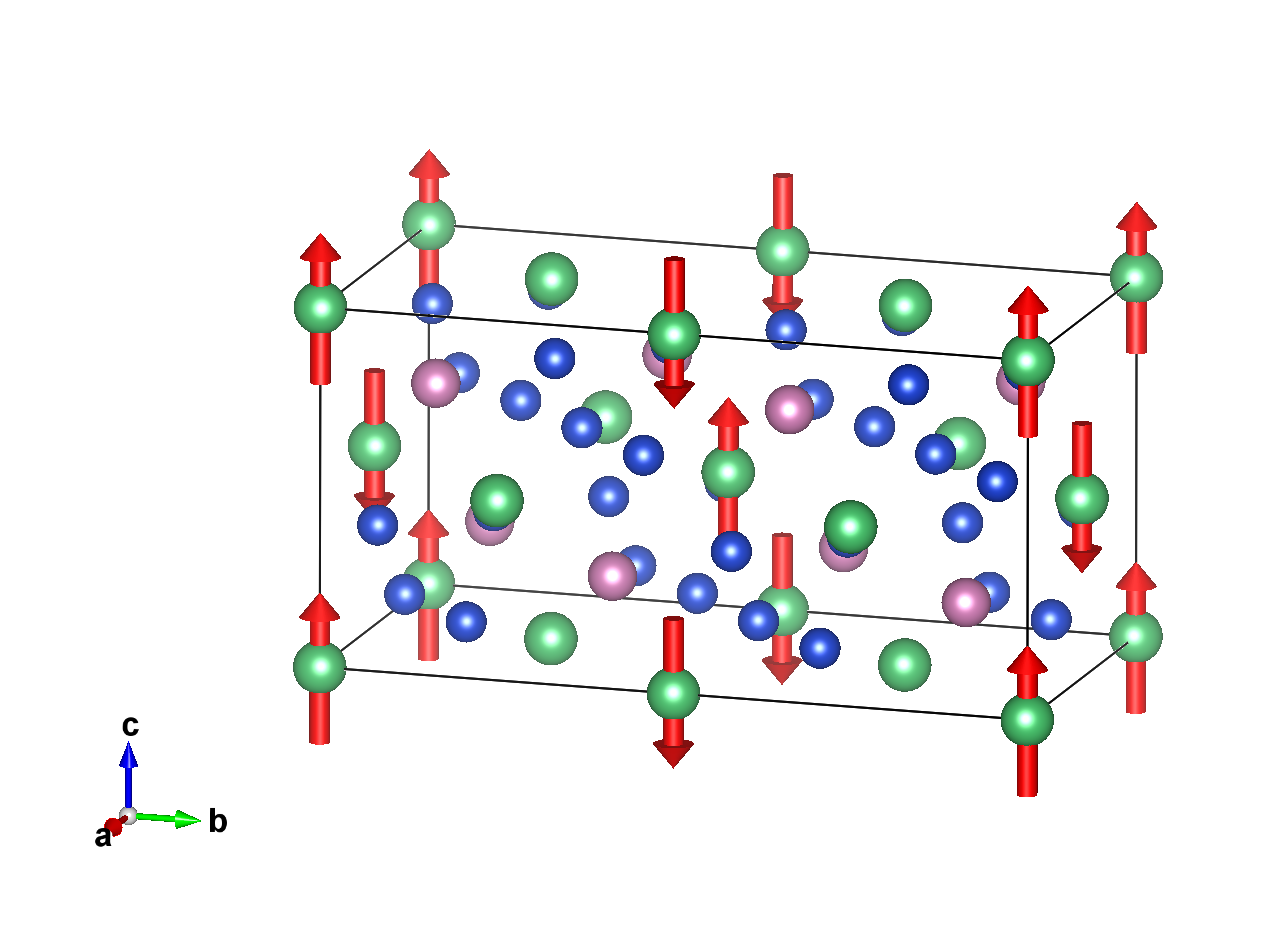

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: O. Stockert, J.-U. Hoffmann, M. Muhlbauer, A. Senyshyn, M. M. Koza, A. A. Tsirlin, F. M. Wolf, S. Bachus, P. Gegenwart, R. Movshovich, S. Bobev, V. Fritsch, PHYSICAL REVIEW RESEARCH (2020) 2 013183
DOI: 10.1103/PhysRevResearch.2.013183
Atomic positions from: same reference

Parent space group (paramagnetic phase): F-43m (#216)
Propagation vector: k1 (0, 1/2, 1)

Transition Temperature: 0.76 K
Experiment Temperature: 0.065 K

Lattice parameters of the magnetic unit cell:
7.17810 14.35620 7.17810 90.00 90.00 90.00
Transformation from parent structure: (a,2b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Ic21c21c21 (#24.56) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,c,-b;1/4,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 222.1' (6.2.18)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Ho1_1Ho0.000000.000000.0000040,0,mz0.00.04.57(6)4.57
Ho1_2Ho0.000000.250000.500004mx,0,00.00.00.00.00

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modes
mW3 6 1 special primary 1
mW4 6 1 special primary 1


Comments:
Comments (symmetry):
