MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	y,x,z,+1	{ m_1-10 \| 0 }
(0,1/4,3/4) + set click here to show and hide
3	x,y+1/4,z+3/4,+1	{ 1 \| 0 1/4 3/4 }
4	y,x+1/4,z+3/4,+1	{ m_1-10 \| 0 1/4 3/4 }
(0,1/2,1/2) + set click here to show and hide
5	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
6	y,x+1/2,z+1/2,+1	{ m_1-10 \| 0 1/2 1/2 }
(0,3/4,1/4) + set click here to show and hide
7	x,y+3/4,z+1/4,+1	{ 1 \| 0 3/4 1/4 }
8	y,x+3/4,z+1/4,+1	{ m_1-10 \| 0 3/4 1/4 }
(1/4,0,3/4) + set click here to show and hide
9	x+1/4,y,z+3/4,+1	{ 1 \| 1/4 0 3/4 }
10	y+1/4,x,z+3/4,+1	{ m_1-10 \| 1/4 0 3/4 }
(1/4,1/4,1/2) + set click here to show and hide
11	x+1/4,y+1/4,z+1/2,+1	{ 1 \| 1/4 1/4 1/2 }
12	y+1/4,x+1/4,z+1/2,+1	{ m_1-10 \| 1/4 1/4 1/2 }
(1/4,1/2,1/4) + set click here to show and hide
13	x+1/4,y+1/2,z+1/4,+1	{ 1 \| 1/4 1/2 1/4 }
14	y+1/4,x+1/2,z+1/4,+1	{ m_1-10 \| 1/4 1/2 1/4 }
(1/4,3/4,0) + set click here to show and hide
15	x+1/4,y+3/4,z,+1	{ 1 \| 1/4 3/4 0 }
16	y+1/4,x+3/4,z,+1	{ m_1-10 \| 1/4 3/4 0 }
(1/2,0,1/2) + set click here to show and hide
17	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
18	y+1/2,x,z+1/2,+1	{ m_1-10 \| 1/2 0 1/2 }
(1/2,1/4,1/4) + set click here to show and hide
19	x+1/2,y+1/4,z+1/4,+1	{ 1 \| 1/2 1/4 1/4 }
20	y+1/2,x+1/4,z+1/4,+1	{ m_1-10 \| 1/2 1/4 1/4 }
(1/2,1/2,0) + set click here to show and hide
21	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
22	y+1/2,x+1/2,z,+1	{ m_1-10 \| 1/2 1/2 0 }
(1/2,3/4,3/4) + set click here to show and hide
23	x+1/2,y+3/4,z+3/4,+1	{ 1 \| 1/2 3/4 3/4 }
24	y+1/2,x+3/4,z+3/4,+1	{ m_1-10 \| 1/2 3/4 3/4 }
(3/4,0,1/4) + set click here to show and hide
25	x+3/4,y,z+1/4,+1	{ 1 \| 3/4 0 1/4 }
26	y+3/4,x,z+1/4,+1	{ m_1-10 \| 3/4 0 1/4 }
(3/4,1/4,0) + set click here to show and hide
27	x+3/4,y+1/4,z,+1	{ 1 \| 3/4 1/4 0 }
28	y+3/4,x+1/4,z,+1	{ m_1-10 \| 3/4 1/4 0 }
(3/4,1/2,3/4) + set click here to show and hide
29	x+3/4,y+1/2,z+3/4,+1	{ 1 \| 3/4 1/2 3/4 }
30	y+3/4,x+1/2,z+3/4,+1	{ m_1-10 \| 3/4 1/2 3/4 }
(3/4,3/4,1/2) + set click here to show and hide
31	x+3/4,y+3/4,z+1/2,+1	{ 1 \| 3/4 3/4 1/2 }
32	y+3/4,x+3/4,z+1/2,+1	{ m_1-10 \| 3/4 3/4 1/2 }
(1/2,1/2,1/2)' + set click here to show and hide
33	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
34	y+1/2,x+1/2,z+1/2,-1	{ m'_1-10 \| 1/2 1/2 1/2 }
(1/2,3/4,1/4)' + set click here to show and hide
35	x+1/2,y+3/4,z+1/4,-1	{ 1' \| 1/2 3/4 1/4 }
36	y+1/2,x+3/4,z+1/4,-1	{ m'_1-10 \| 1/2 3/4 1/4 }
(1/2,0,0)' + set click here to show and hide
37	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
38	y+1/2,x,z,-1	{ m'_1-10 \| 1/2 0 0 }
(1/2,1/4,3/4)' + set click here to show and hide
39	x+1/2,y+1/4,z+3/4,-1	{ 1' \| 1/2 1/4 3/4 }
40	y+1/2,x+1/4,z+3/4,-1	{ m'_1-10 \| 1/2 1/4 3/4 }
(3/4,1/2,1/4)' + set click here to show and hide
41	x+3/4,y+1/2,z+1/4,-1	{ 1' \| 3/4 1/2 1/4 }
42	y+3/4,x+1/2,z+1/4,-1	{ m'_1-10 \| 3/4 1/2 1/4 }
(3/4,3/4,0)' + set click here to show and hide
43	x+3/4,y+3/4,z,-1	{ 1' \| 3/4 3/4 0 }
44	y+3/4,x+3/4,z,-1	{ m'_1-10 \| 3/4 3/4 0 }
(3/4,0,3/4)' + set click here to show and hide
45	x+3/4,y,z+3/4,-1	{ 1' \| 3/4 0 3/4 }
46	y+3/4,x,z+3/4,-1	{ m'_1-10 \| 3/4 0 3/4 }
(3/4,1/4,1/2)' + set click here to show and hide
47	x+3/4,y+1/4,z+1/2,-1	{ 1' \| 3/4 1/4 1/2 }
48	y+3/4,x+1/4,z+1/2,-1	{ m'_1-10 \| 3/4 1/4 1/2 }
(0,1/2,0)' + set click here to show and hide
49	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
50	y,x+1/2,z,-1	{ m'_1-10 \| 0 1/2 0 }
(0,3/4,3/4)' + set click here to show and hide
51	x,y+3/4,z+3/4,-1	{ 1' \| 0 3/4 3/4 }
52	y,x+3/4,z+3/4,-1	{ m'_1-10 \| 0 3/4 3/4 }
(0,0,1/2)' + set click here to show and hide
53	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
54	y,x,z+1/2,-1	{ m'_1-10 \| 0 0 1/2 }
(0,1/4,1/4)' + set click here to show and hide
55	x,y+1/4,z+1/4,-1	{ 1' \| 0 1/4 1/4 }
56	y,x+1/4,z+1/4,-1	{ m'_1-10 \| 0 1/4 1/4 }
(1/4,1/2,3/4)' + set click here to show and hide
57	x+1/4,y+1/2,z+3/4,-1	{ 1' \| 1/4 1/2 3/4 }
58	y+1/4,x+1/2,z+3/4,-1	{ m'_1-10 \| 1/4 1/2 3/4 }
(1/4,3/4,1/2)' + set click here to show and hide
59	x+1/4,y+3/4,z+1/2,-1	{ 1' \| 1/4 3/4 1/2 }
60	y+1/4,x+3/4,z+1/2,-1	{ m'_1-10 \| 1/4 3/4 1/2 }
(1/4,0,1/4)' + set click here to show and hide
61	x+1/4,y,z+1/4,-1	{ 1' \| 1/4 0 1/4 }
62	y+1/4,x,z+1/4,-1	{ m'_1-10 \| 1/4 0 1/4 }
(1/4,1/4,0)' + set click here to show and hide
63	x+1/4,y+1/4,z,-1	{ 1' \| 1/4 1/4 0 }
64	y+1/4,x+1/4,z,-1	{ m'_1-10 \| 1/4 1/4 0 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	y,x,z,+1	m_1-10
1' + set click here to show and hide
3	x,y,z,-1	1'
4	y,x,z,-1	m'_1-10

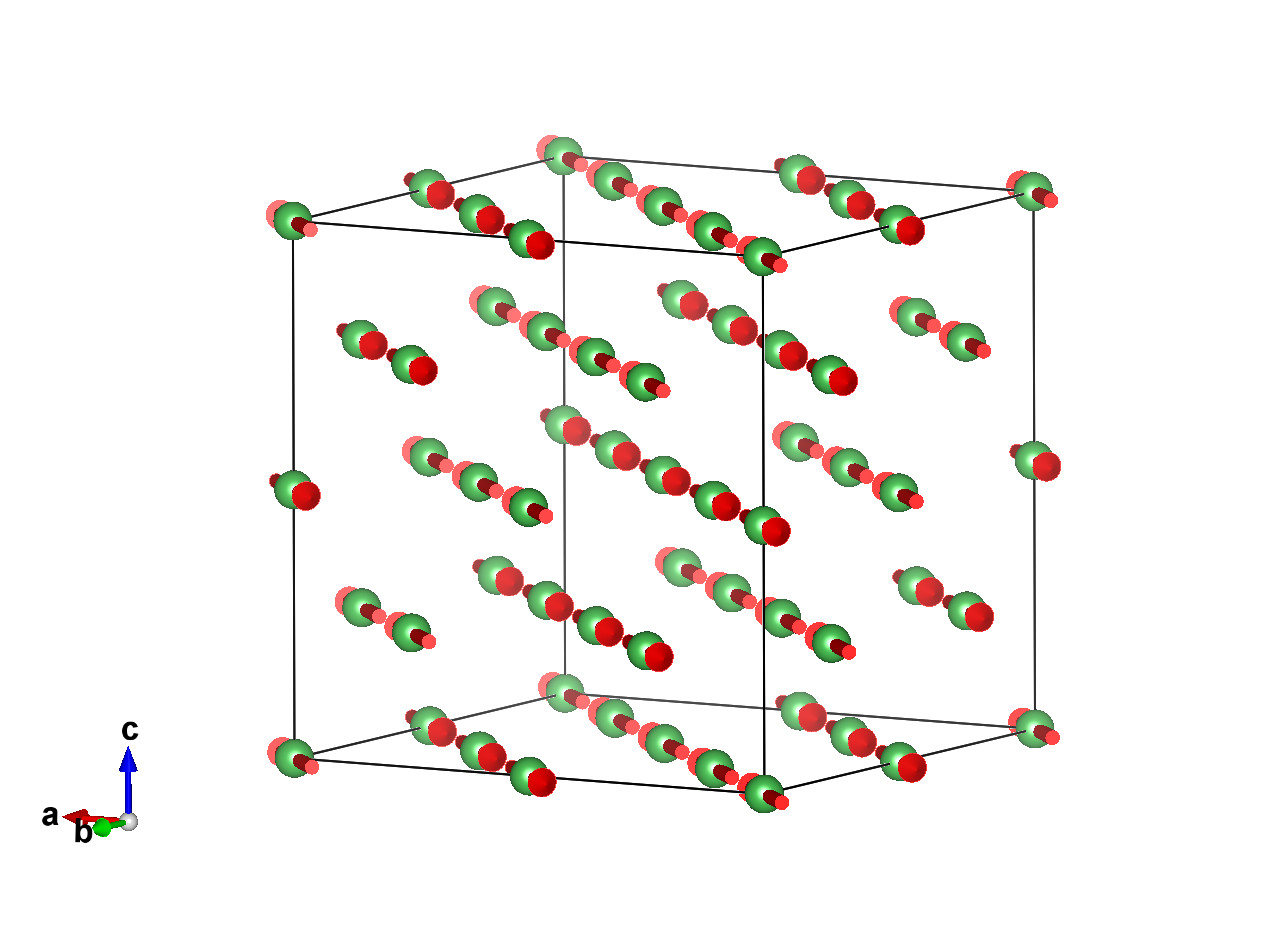

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.00000	0.00000	32	m_x,-m_x,0	6.72	-6.72	0.0	9.50

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cd1	Cd	0.12500	0.12500	0.12500	32
Cu1_1	Cu	0.31211	0.31211	0.31211	32
Cu1_2	Cu	0.68789	0.68789	0.31211	32
Cu1_3	Cu	0.68789	0.31211	0.68789	64

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ho1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(0,1/4,3/4) + set click here to show and hide
2	0.00000	0.25000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(0,3/4,1/4) + set click here to show and hide
4	0.00000	0.75000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,0,3/4) + set click here to show and hide
5	0.25000	0.00000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
6	0.25000	0.25000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,1/2,1/4) + set click here to show and hide
7	0.25000	0.50000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,3/4,0) + set click here to show and hide
8	0.25000	0.75000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.00000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,1/4,1/4) + set click here to show and hide
10	0.50000	0.25000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.50000	0.50000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,3/4,3/4) + set click here to show and hide
12	0.50000	0.75000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,0,1/4) + set click here to show and hide
13	0.75000	0.00000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,1/4,0) + set click here to show and hide
14	0.75000	0.25000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,1/2,3/4) + set click here to show and hide
15	0.75000	0.50000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
16	0.75000	0.75000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
17	0.50000	0.50000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/2,3/4,1/4)' + set click here to show and hide
18	0.50000	0.75000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/2,0,0)' + set click here to show and hide
19	0.50000	0.00000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/2,1/4,3/4)' + set click here to show and hide
20	0.50000	0.25000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,1/2,1/4)' + set click here to show and hide
21	0.75000	0.50000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,3/4,0)' + set click here to show and hide
22	0.75000	0.75000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,0,3/4)' + set click here to show and hide
23	0.75000	0.00000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
24	0.75000	0.25000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,1/2,0)' + set click here to show and hide
25	0.00000	0.50000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,3/4,3/4)' + set click here to show and hide
26	0.00000	0.75000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,0,1/2)' + set click here to show and hide
27	0.00000	0.00000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,1/4,1/4)' + set click here to show and hide
28	0.00000	0.25000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,1/2,3/4)' + set click here to show and hide
29	0.25000	0.50000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
30	0.25000	0.75000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,0,1/4)' + set click here to show and hide
31	0.25000	0.00000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,1/4,0)' + set click here to show and hide
32	0.25000	0.25000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Cd1:

Atom	x	y	z
1	0.12500	0.12500	0.12500
(0,1/4,3/4) + set click here to show and hide
2	0.12500	0.37500	0.87500
(0,1/2,1/2) + set click here to show and hide
3	0.12500	0.62500	0.62500
(0,3/4,1/4) + set click here to show and hide
4	0.12500	0.87500	0.37500
(1/4,0,3/4) + set click here to show and hide
5	0.37500	0.12500	0.87500
(1/4,1/4,1/2) + set click here to show and hide
6	0.37500	0.37500	0.62500
(1/4,1/2,1/4) + set click here to show and hide
7	0.37500	0.62500	0.37500
(1/4,3/4,0) + set click here to show and hide
8	0.37500	0.87500	0.12500
(1/2,0,1/2) + set click here to show and hide
9	0.62500	0.12500	0.62500
(1/2,1/4,1/4) + set click here to show and hide
10	0.62500	0.37500	0.37500
(1/2,1/2,0) + set click here to show and hide
11	0.62500	0.62500	0.12500
(1/2,3/4,3/4) + set click here to show and hide
12	0.62500	0.87500	0.87500
(3/4,0,1/4) + set click here to show and hide
13	0.87500	0.12500	0.37500
(3/4,1/4,0) + set click here to show and hide
14	0.87500	0.37500	0.12500
(3/4,1/2,3/4) + set click here to show and hide
15	0.87500	0.62500	0.87500
(3/4,3/4,1/2) + set click here to show and hide
16	0.87500	0.87500	0.62500
(1/2,1/2,1/2)' + set click here to show and hide
17	0.62500	0.62500	0.62500
(1/2,3/4,1/4)' + set click here to show and hide
18	0.62500	0.87500	0.37500
(1/2,0,0)' + set click here to show and hide
19	0.62500	0.12500	0.12500
(1/2,1/4,3/4)' + set click here to show and hide
20	0.62500	0.37500	0.87500
(3/4,1/2,1/4)' + set click here to show and hide
21	0.87500	0.62500	0.37500
(3/4,3/4,0)' + set click here to show and hide
22	0.87500	0.87500	0.12500
(3/4,0,3/4)' + set click here to show and hide
23	0.87500	0.12500	0.87500
(3/4,1/4,1/2)' + set click here to show and hide
24	0.87500	0.37500	0.62500
(0,1/2,0)' + set click here to show and hide
25	0.12500	0.62500	0.12500
(0,3/4,3/4)' + set click here to show and hide
26	0.12500	0.87500	0.87500
(0,0,1/2)' + set click here to show and hide
27	0.12500	0.12500	0.62500
(0,1/4,1/4)' + set click here to show and hide
28	0.12500	0.37500	0.37500
(1/4,1/2,3/4)' + set click here to show and hide
29	0.37500	0.62500	0.87500
(1/4,3/4,1/2)' + set click here to show and hide
30	0.37500	0.87500	0.62500
(1/4,0,1/4)' + set click here to show and hide
31	0.37500	0.12500	0.37500
(1/4,1/4,0)' + set click here to show and hide
32	0.37500	0.37500	0.12500

Set of atoms in the unit cell related by symmetry with the atom Cu1_1:

Atom	x	y	z
1	0.31211	0.31211	0.31211
(0,1/4,3/4) + set click here to show and hide
2	0.31211	0.56211	0.06211
(0,1/2,1/2) + set click here to show and hide
3	0.31211	0.81211	0.81211
(0,3/4,1/4) + set click here to show and hide
4	0.31211	0.06211	0.56211
(1/4,0,3/4) + set click here to show and hide
5	0.56211	0.31211	0.06211
(1/4,1/4,1/2) + set click here to show and hide
6	0.56211	0.56211	0.81211
(1/4,1/2,1/4) + set click here to show and hide
7	0.56211	0.81211	0.56211
(1/4,3/4,0) + set click here to show and hide
8	0.56211	0.06211	0.31211
(1/2,0,1/2) + set click here to show and hide
9	0.81211	0.31211	0.81211
(1/2,1/4,1/4) + set click here to show and hide
10	0.81211	0.56211	0.56211
(1/2,1/2,0) + set click here to show and hide
11	0.81211	0.81211	0.31211
(1/2,3/4,3/4) + set click here to show and hide
12	0.81211	0.06211	0.06211
(3/4,0,1/4) + set click here to show and hide
13	0.06211	0.31211	0.56211
(3/4,1/4,0) + set click here to show and hide
14	0.06211	0.56211	0.31211
(3/4,1/2,3/4) + set click here to show and hide
15	0.06211	0.81211	0.06211
(3/4,3/4,1/2) + set click here to show and hide
16	0.06211	0.06211	0.81211
(1/2,1/2,1/2)' + set click here to show and hide
17	0.81211	0.81211	0.81211
(1/2,3/4,1/4)' + set click here to show and hide
18	0.81211	0.06211	0.56211
(1/2,0,0)' + set click here to show and hide
19	0.81211	0.31211	0.31211
(1/2,1/4,3/4)' + set click here to show and hide
20	0.81211	0.56211	0.06211
(3/4,1/2,1/4)' + set click here to show and hide
21	0.06211	0.81211	0.56211
(3/4,3/4,0)' + set click here to show and hide
22	0.06211	0.06211	0.31211
(3/4,0,3/4)' + set click here to show and hide
23	0.06211	0.31211	0.06211
(3/4,1/4,1/2)' + set click here to show and hide
24	0.06211	0.56211	0.81211
(0,1/2,0)' + set click here to show and hide
25	0.31211	0.81211	0.31211
(0,3/4,3/4)' + set click here to show and hide
26	0.31211	0.06211	0.06211
(0,0,1/2)' + set click here to show and hide
27	0.31211	0.31211	0.81211
(0,1/4,1/4)' + set click here to show and hide
28	0.31211	0.56211	0.56211
(1/4,1/2,3/4)' + set click here to show and hide
29	0.56211	0.81211	0.06211
(1/4,3/4,1/2)' + set click here to show and hide
30	0.56211	0.06211	0.81211
(1/4,0,1/4)' + set click here to show and hide
31	0.56211	0.31211	0.56211
(1/4,1/4,0)' + set click here to show and hide
32	0.56211	0.56211	0.31211

Set of atoms in the unit cell related by symmetry with the atom Cu1_2:

Atom	x	y	z
1	0.68789	0.68789	0.31211
(0,1/4,3/4) + set click here to show and hide
2	0.68789	0.93789	0.06211
(0,1/2,1/2) + set click here to show and hide
3	0.68789	0.18789	0.81211
(0,3/4,1/4) + set click here to show and hide
4	0.68789	0.43789	0.56211
(1/4,0,3/4) + set click here to show and hide
5	0.93789	0.68789	0.06211
(1/4,1/4,1/2) + set click here to show and hide
6	0.93789	0.93789	0.81211
(1/4,1/2,1/4) + set click here to show and hide
7	0.93789	0.18789	0.56211
(1/4,3/4,0) + set click here to show and hide
8	0.93789	0.43789	0.31211
(1/2,0,1/2) + set click here to show and hide
9	0.18789	0.68789	0.81211
(1/2,1/4,1/4) + set click here to show and hide
10	0.18789	0.93789	0.56211
(1/2,1/2,0) + set click here to show and hide
11	0.18789	0.18789	0.31211
(1/2,3/4,3/4) + set click here to show and hide
12	0.18789	0.43789	0.06211
(3/4,0,1/4) + set click here to show and hide
13	0.43789	0.68789	0.56211
(3/4,1/4,0) + set click here to show and hide
14	0.43789	0.93789	0.31211
(3/4,1/2,3/4) + set click here to show and hide
15	0.43789	0.18789	0.06211
(3/4,3/4,1/2) + set click here to show and hide
16	0.43789	0.43789	0.81211
(1/2,1/2,1/2)' + set click here to show and hide
17	0.18789	0.18789	0.81211
(1/2,3/4,1/4)' + set click here to show and hide
18	0.18789	0.43789	0.56211
(1/2,0,0)' + set click here to show and hide
19	0.18789	0.68789	0.31211
(1/2,1/4,3/4)' + set click here to show and hide
20	0.18789	0.93789	0.06211
(3/4,1/2,1/4)' + set click here to show and hide
21	0.43789	0.18789	0.56211
(3/4,3/4,0)' + set click here to show and hide
22	0.43789	0.43789	0.31211
(3/4,0,3/4)' + set click here to show and hide
23	0.43789	0.68789	0.06211
(3/4,1/4,1/2)' + set click here to show and hide
24	0.43789	0.93789	0.81211
(0,1/2,0)' + set click here to show and hide
25	0.68789	0.18789	0.31211
(0,3/4,3/4)' + set click here to show and hide
26	0.68789	0.43789	0.06211
(0,0,1/2)' + set click here to show and hide
27	0.68789	0.68789	0.81211
(0,1/4,1/4)' + set click here to show and hide
28	0.68789	0.93789	0.56211
(1/4,1/2,3/4)' + set click here to show and hide
29	0.93789	0.18789	0.06211
(1/4,3/4,1/2)' + set click here to show and hide
30	0.93789	0.43789	0.81211
(1/4,0,1/4)' + set click here to show and hide
31	0.93789	0.68789	0.56211
(1/4,1/4,0)' + set click here to show and hide
32	0.93789	0.93789	0.31211

Set of atoms in the unit cell related by symmetry with the atom Cu1_3:

Atom	x	y	z
1	0.68789	0.31211	0.68789
2	0.31211	0.68789	0.68789
(0,1/4,3/4) + set click here to show and hide
3	0.68789	0.56211	0.43789
4	0.31211	0.93789	0.43789
(0,1/2,1/2) + set click here to show and hide
5	0.68789	0.81211	0.18789
6	0.31211	0.18789	0.18789
(0,3/4,1/4) + set click here to show and hide
7	0.68789	0.06211	0.93789
8	0.31211	0.43789	0.93789
(1/4,0,3/4) + set click here to show and hide
9	0.93789	0.31211	0.43789
10	0.56211	0.68789	0.43789
(1/4,1/4,1/2) + set click here to show and hide
11	0.93789	0.56211	0.18789
12	0.56211	0.93789	0.18789
(1/4,1/2,1/4) + set click here to show and hide
13	0.93789	0.81211	0.93789
14	0.56211	0.18789	0.93789
(1/4,3/4,0) + set click here to show and hide
15	0.93789	0.06211	0.68789
16	0.56211	0.43789	0.68789
(1/2,0,1/2) + set click here to show and hide
17	0.18789	0.31211	0.18789
18	0.81211	0.68789	0.18789
(1/2,1/4,1/4) + set click here to show and hide
19	0.18789	0.56211	0.93789
20	0.81211	0.93789	0.93789
(1/2,1/2,0) + set click here to show and hide
21	0.18789	0.81211	0.68789
22	0.81211	0.18789	0.68789
(1/2,3/4,3/4) + set click here to show and hide
23	0.18789	0.06211	0.43789
24	0.81211	0.43789	0.43789
(3/4,0,1/4) + set click here to show and hide
25	0.43789	0.31211	0.93789
26	0.06211	0.68789	0.93789
(3/4,1/4,0) + set click here to show and hide
27	0.43789	0.56211	0.68789
28	0.06211	0.93789	0.68789
(3/4,1/2,3/4) + set click here to show and hide
29	0.43789	0.81211	0.43789
30	0.06211	0.18789	0.43789
(3/4,3/4,1/2) + set click here to show and hide
31	0.43789	0.06211	0.18789
32	0.06211	0.43789	0.18789
(1/2,1/2,1/2)' + set click here to show and hide
33	0.18789	0.81211	0.18789
34	0.81211	0.18789	0.18789
(1/2,3/4,1/4)' + set click here to show and hide
35	0.18789	0.06211	0.93789
36	0.81211	0.43789	0.93789
(1/2,0,0)' + set click here to show and hide
37	0.18789	0.31211	0.68789
38	0.81211	0.68789	0.68789
(1/2,1/4,3/4)' + set click here to show and hide
39	0.18789	0.56211	0.43789
40	0.81211	0.93789	0.43789
(3/4,1/2,1/4)' + set click here to show and hide
41	0.43789	0.81211	0.93789
42	0.06211	0.18789	0.93789
(3/4,3/4,0)' + set click here to show and hide
43	0.43789	0.06211	0.68789
44	0.06211	0.43789	0.68789
(3/4,0,3/4)' + set click here to show and hide
45	0.43789	0.31211	0.43789
46	0.06211	0.68789	0.43789
(3/4,1/4,1/2)' + set click here to show and hide
47	0.43789	0.56211	0.18789
48	0.06211	0.93789	0.18789
(0,1/2,0)' + set click here to show and hide
49	0.68789	0.81211	0.68789
50	0.31211	0.18789	0.68789
(0,3/4,3/4)' + set click here to show and hide
51	0.68789	0.06211	0.43789
52	0.31211	0.43789	0.43789
(0,0,1/2)' + set click here to show and hide
53	0.68789	0.31211	0.18789
54	0.31211	0.68789	0.18789
(0,1/4,1/4)' + set click here to show and hide
55	0.68789	0.56211	0.93789
56	0.31211	0.93789	0.93789
(1/4,1/2,3/4)' + set click here to show and hide
57	0.93789	0.81211	0.43789
58	0.56211	0.18789	0.43789
(1/4,3/4,1/2)' + set click here to show and hide
59	0.93789	0.06211	0.18789
60	0.56211	0.43789	0.18789
(1/4,0,1/4)' + set click here to show and hide
61	0.93789	0.31211	0.93789
62	0.56211	0.68789	0.93789
(1/4,1/4,0)' + set click here to show and hide
63	0.93789	0.56211	0.68789
64	0.56211	0.93789	0.68789

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.00000	0.00000	32	m_x,-m_x,0	6.72	-6.72	0.0	9.50

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ho1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(0,1/4,3/4) + set click here to show and hide
2	0.00000	0.25000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(0,3/4,1/4) + set click here to show and hide
4	0.00000	0.75000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,0,3/4) + set click here to show and hide
5	0.25000	0.00000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
6	0.25000	0.25000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,1/2,1/4) + set click here to show and hide
7	0.25000	0.50000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/4,3/4,0) + set click here to show and hide
8	0.25000	0.75000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.00000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,1/4,1/4) + set click here to show and hide
10	0.50000	0.25000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,1/2,0) + set click here to show and hide
11	0.50000	0.50000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,3/4,3/4) + set click here to show and hide
12	0.50000	0.75000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,0,1/4) + set click here to show and hide
13	0.75000	0.00000	0.25000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,1/4,0) + set click here to show and hide
14	0.75000	0.25000	0.00000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,1/2,3/4) + set click here to show and hide
15	0.75000	0.50000	0.75000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
16	0.75000	0.75000	0.50000	m_x,-m_x,0	6.72000	-6.72000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
17	0.50000	0.50000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/2,3/4,1/4)' + set click here to show and hide
18	0.50000	0.75000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/2,0,0)' + set click here to show and hide
19	0.50000	0.00000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/2,1/4,3/4)' + set click here to show and hide
20	0.50000	0.25000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,1/2,1/4)' + set click here to show and hide
21	0.75000	0.50000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,3/4,0)' + set click here to show and hide
22	0.75000	0.75000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,0,3/4)' + set click here to show and hide
23	0.75000	0.00000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
24	0.75000	0.25000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,1/2,0)' + set click here to show and hide
25	0.00000	0.50000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,3/4,3/4)' + set click here to show and hide
26	0.00000	0.75000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,0,1/2)' + set click here to show and hide
27	0.00000	0.00000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(0,1/4,1/4)' + set click here to show and hide
28	0.00000	0.25000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,1/2,3/4)' + set click here to show and hide
29	0.25000	0.50000	0.75000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
30	0.25000	0.75000	0.50000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,0,1/4)' + set click here to show and hide
31	0.25000	0.00000	0.25000	-m_x,m_x,0	-6.72000	6.72000	0.00000
(1/4,1/4,0)' + set click here to show and hide
32	0.25000	0.25000	0.00000	-m_x,m_x,0	-6.72000	6.72000	0.00000

[Hide]

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mL3	8	2	special	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files

HoCdCu₄ (#1.701)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

HoCdCu4 (#1.701)

HoCdCu₄ (#1.701)
