TbGe3 (#2.36)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

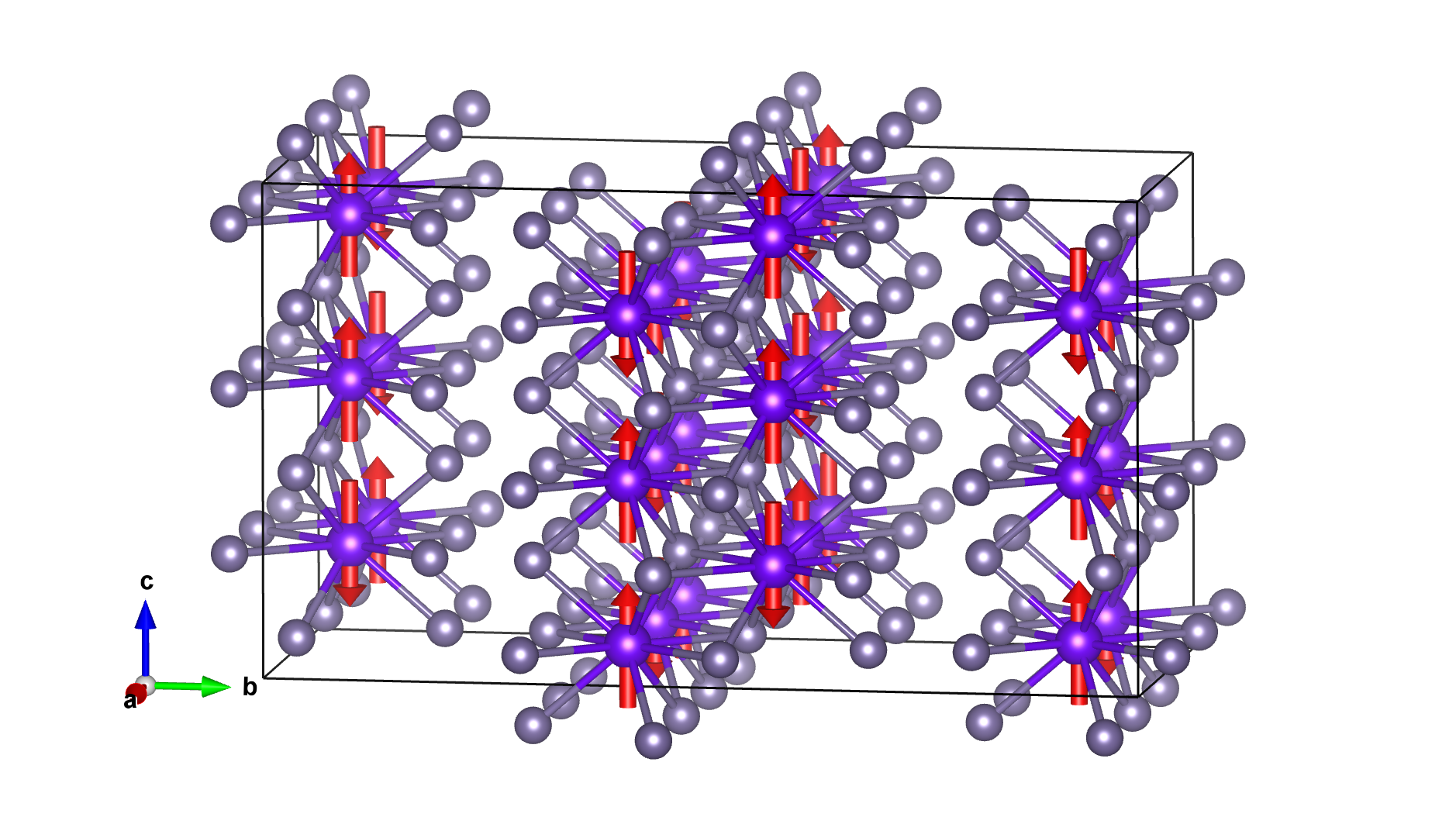

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: P Schobinger-Papamantellos, J Rodriguez-Carvajal, K H J Buschow et al., J. Phys.: Condens. Matter (2007) 19 236201
DOI: 1088/0953-8984/19/23/236201
Atomic positions from: same reference

Parent space group (paramagnetic phase): Cmcm (#63)
Propagation vector(s):
k1 (1/2, 0, 1/3)
k2 (1/2, 0, -1/3)

Transition Temperature: 23 K
Experiment Temperature: 8 K

Lattice parameters of the magnetic unit cell:
8.09400 20.80400 11.74440 90.00 90.00 90.00
Transformation from parent structure: (2a,b,3c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pcnma (#62.452) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (b,c,a;7/8,1/4,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: mmm.1' (8.2.25)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Tb1_1Tb0.000000.416700.0833316mx,my,mz0.00.08.15(7)8.15
Tb1_2Tb0.000000.583300.2500080,0,mz0.00.0-8.30(5)8.30

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modespresence
mM1 4 1 special-2 primary 3
mSM4 2 1 secondary 1 yes


Comments:
Comments (symmetry):
