MAGNDATA - Collection of Magnetic Structures

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1_1	Cr	0.12500	0.12500	0.12500	4	m_x,m_x,m_z	0.4	0.4	0.4	0.69
Cr1_2	Cr	0.87500	0.37500	0.62500	8	m_x,m_y,m_z	-0.4	0.4	-0.4	0.69
Cr1_3	Cr	0.37500	0.62500	0.87500	4	m_x,-m_x,m_z	-0.4	0.4	0.4	0.69

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Mg1_1	Mg	0.25000	0.25000	0.25000	4
Mg1_2	Mg	0.00000	0.50000	0.50000	2
Mg1_3	Mg	0.00000	0.00000	0.00000	1
Mg1_4	Mg	0.50000	0.50000	0.00000	1
O1_1	O	0.38900	0.38900	0.38900	4
O1_2	O	0.61100	0.11100	0.88900	8
O1_3	O	0.11100	0.88900	0.61100	4
O1_4	O	0.13900	0.63900	0.36100	8
O1_5	O	0.86100	0.86100	0.86100	4
O1_6	O	0.63900	0.36100	0.13900	4

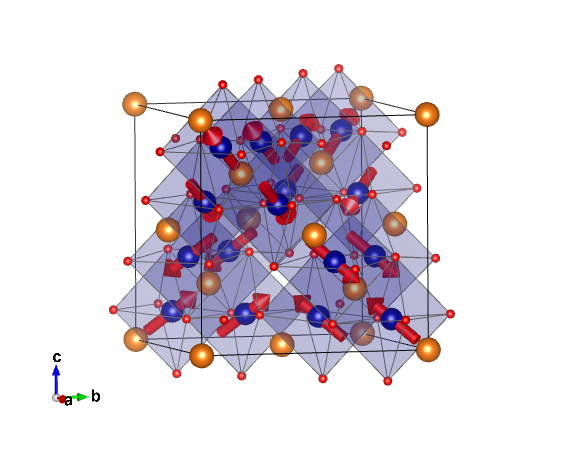

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.12500	0.12500	0.12500	m_x,m_x,m_z	0.40000	0.40000	0.40000
2	0.87500	0.87500	0.12500	-m_x,-m_x,m_z	-0.40000	-0.40000	0.40000
3	0.12500	0.87500	0.87500	-m_x,m_x,m_z	-0.40000	0.40000	0.40000
4	0.87500	0.12500	0.87500	m_x,-m_x,m_z	0.40000	-0.40000	0.40000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.87500	0.37500	0.62500	m_x,m_y,m_z	-0.40000	0.40000	-0.40000
2	0.12500	0.62500	0.62500	-m_x,-m_y,m_z	0.40000	-0.40000	-0.40000
3	0.37500	0.12500	0.37500	-m_y,m_x,m_z	-0.40000	-0.40000	-0.40000
4	0.62500	0.87500	0.37500	m_y,-m_x,m_z	0.40000	0.40000	-0.40000
5	0.87500	0.62500	0.37500	-m_x,m_y,m_z	0.40000	0.40000	-0.40000
6	0.12500	0.37500	0.37500	m_x,-m_y,m_z	-0.40000	-0.40000	-0.40000
7	0.62500	0.12500	0.62500	-m_y,-m_x,m_z	-0.40000	0.40000	-0.40000
8	0.37500	0.87500	0.62500	m_y,m_x,m_z	0.40000	-0.40000	-0.40000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.37500	0.62500	0.87500	m_x,-m_x,m_z	-0.40000	0.40000	0.40000
2	0.62500	0.37500	0.87500	-m_x,m_x,m_z	0.40000	-0.40000	0.40000
3	0.62500	0.62500	0.12500	m_x,m_x,m_z	-0.40000	-0.40000	0.40000
4	0.37500	0.37500	0.12500	-m_x,-m_x,m_z	0.40000	0.40000	0.40000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Mg1_1:

Set of atoms in the unit cell related by symmetry with the atom Mg1_2:

Atom	x	y	z
1	0.00000	0.50000	0.50000
2	0.50000	0.00000	0.50000

Set of atoms in the unit cell related by symmetry with the atom Mg1_3:

Atom	x	y	z
1	0.00000	0.00000	0.00000

Set of atoms in the unit cell related by symmetry with the atom Mg1_4:

Atom	x	y	z
1	0.50000	0.50000	0.00000

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Set of atoms in the unit cell related by symmetry with the atom O1_2:

Set of atoms in the unit cell related by symmetry with the atom O1_3:

Set of atoms in the unit cell related by symmetry with the atom O1_4:

Set of atoms in the unit cell related by symmetry with the atom O1_5:

Set of atoms in the unit cell related by symmetry with the atom O1_6:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cr1_1	Cr	0.12500	0.12500	0.12500	4	m_x,m_x,m_z	0.4	0.4	0.4	0.69
Cr1_2	Cr	0.87500	0.37500	0.62500	8	m_x,m_y,m_z	-0.4	0.4	-0.4	0.69
Cr1_3	Cr	0.37500	0.62500	0.87500	4	m_x,-m_x,m_z	-0.4	0.4	0.4	0.69

MAGNDATA: A Collection of magnetic structures with portable cif-type files
