DyB4 (#0.22)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

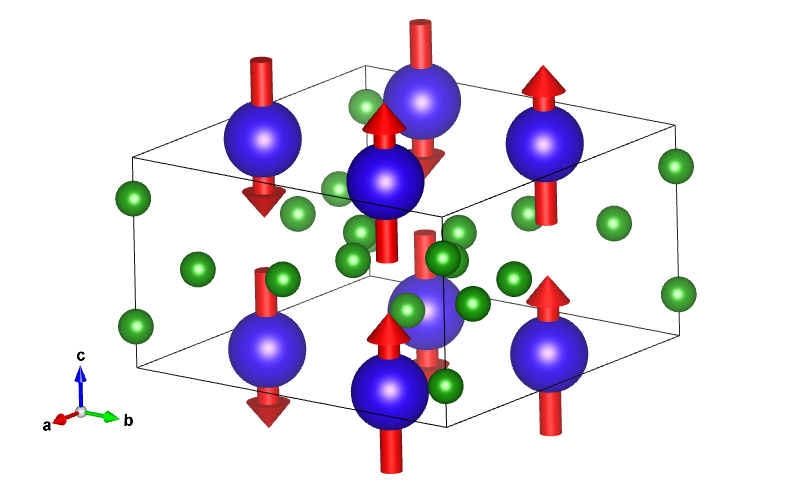

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: G. Will and W. Schafer, Journal of the Less Common Metals (1979) 67 31-39.
DOI: 10.1016/0022-5088(79)90071-7
Atomic positions from: ICSD #68651

Parent space group (paramagnetic phase): P4/mbm (#127)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 21 K
Experiment Temperature: 4.2 K

Lattice parameters of the magnetic unit cell:
7.02100 7.02100 3.97200 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pb'am (#55.355) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (b,-a,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'mm (8.3.26)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
DyDy0.319000.819000.0000040,0,mz0.00.09.89.80

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionaction
mGM5- 2 2 special primary


Comments:
Comments (symmetry):
