  Enter the label of the structure:

(NH2(CH3)2)(FeMn(HCOO)6) (#0.251)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)

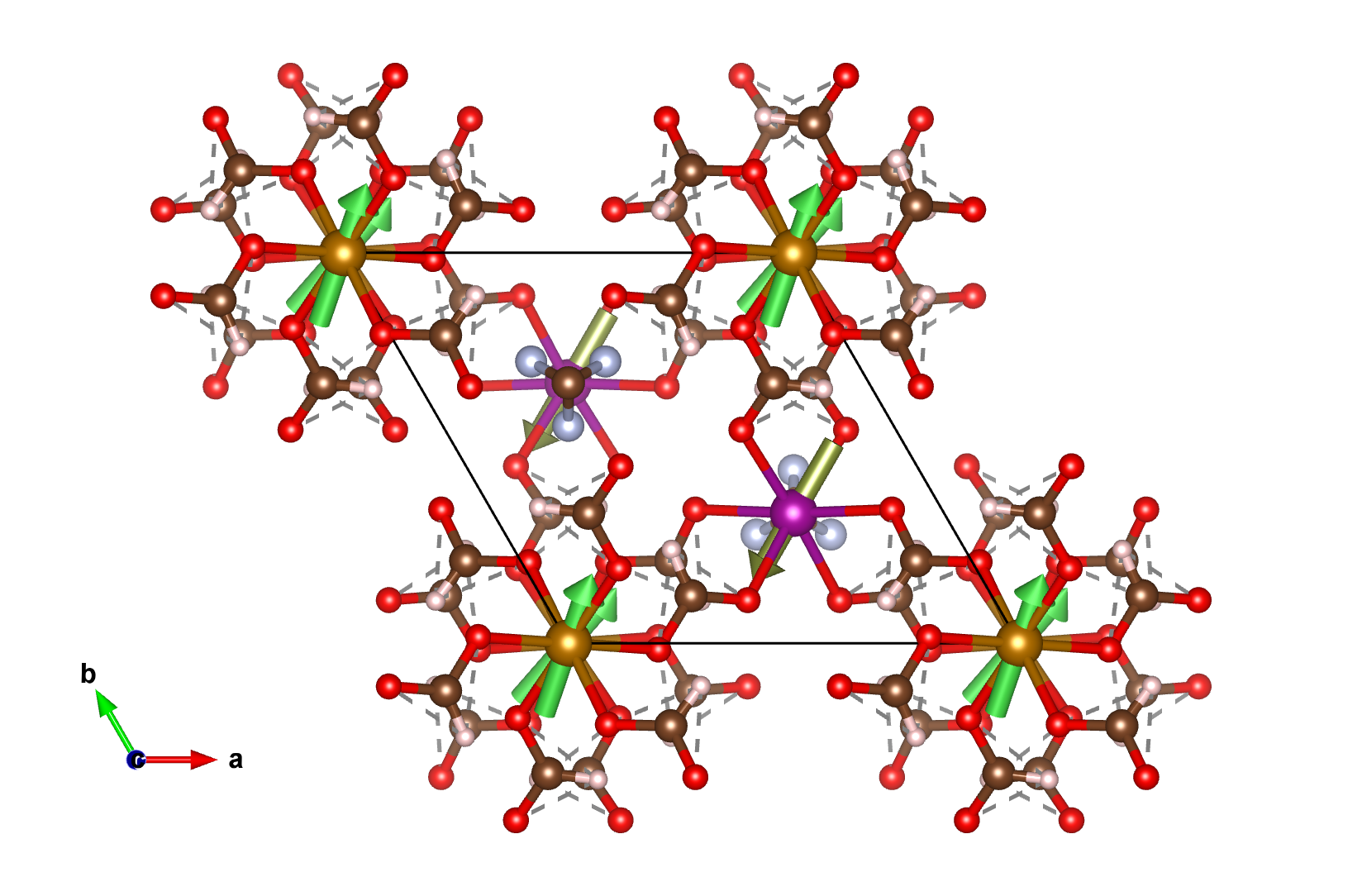

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms

Reference: L. Mazzuca, L. Canadillas-Delgado, J.A. Rodriguez-Velamazan, O. Fabelo, M. Scarrozza, A. Stroppa, S. Picozzi, J.-P. Zhao, X.-H. Bu and J. Rodriguez-Carvajal, Inorganic Chemistry (2016) 56 197-207.
DOI: 10.1021/acs.inorgchem.6b01866
Atomic positions from: same reference

Parent space group (paramagnetic phase): P-3c1 (#163)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 35 K
Experiment Temperature: 2 K

Lattice parameters of the magnetic unit cell:
8.3200(13) 8.3200(13) 13.930(2) 90.00 90.00 120.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: C2'/c' (#15.89) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a+b,-a+b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 2'/m' (5.5.16)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|

    [Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:
Irrep decomposition via

labeldim. full irrepdim. small irrepdirectionactionnumber of modespresence
mGM3+ 2 2 special primary 3
mGM2+ 1 1 secondary 2 yes

Comments (symmetry):
