Sr3NiIrO6 (#1.0.10)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

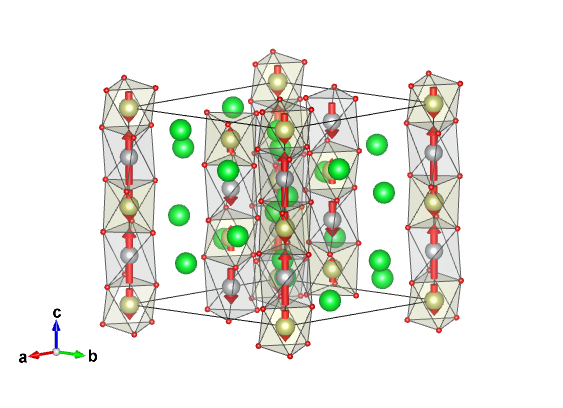

Magnetic structure with all atoms

Magnetic structure with only magnetic atoms


Reference: E. Lefran├žois, L.C. Chapon, V. Simonet, P. Lejay, D. Khalyavin, S. Rayaprol, E.V. Sampathkumaran, R. Ballou and D.T. Adroja, Physical Review B (2014) 90.
DOI: 10.1103/physrevb.90.014408
Atomic positions from: ICSD #80287

Parent space group (paramagnetic phase): R-3c (#167)
Propagation vector(s):
k1 (0, 0, 1)
k2 (0, 0, 0)

Transition Temperature: 75 K
Experiment Temperature: 2 K

Lattice parameters of the magnetic unit cell:
9.57830 9.57830 11.13210 90.00 90.00 120.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P-3c'1 (#165.95) (standard setting)
    [View symmetry operations]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: -3m' (20.5.75)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Ir1_1Ir0.000000.000000.0000020,0,mz0.00.0-0.5(1)0.50
Ir1_2Ir0.666670.333330.3333340,0,mz0.00.00.250.25
Ni1_1Ni0.000000.000000.2500020,0,mz0.00.01.5(1)1.50
Ni1_2Ni0.666670.333330.5833340,0,mz0.00.0-0.750.75

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modes
mLD1 2 1 special primary 4


Comments:
Comments (symmetry):
