CeIrGe3 (#1.0.29)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


Magnetic structure with all atoms

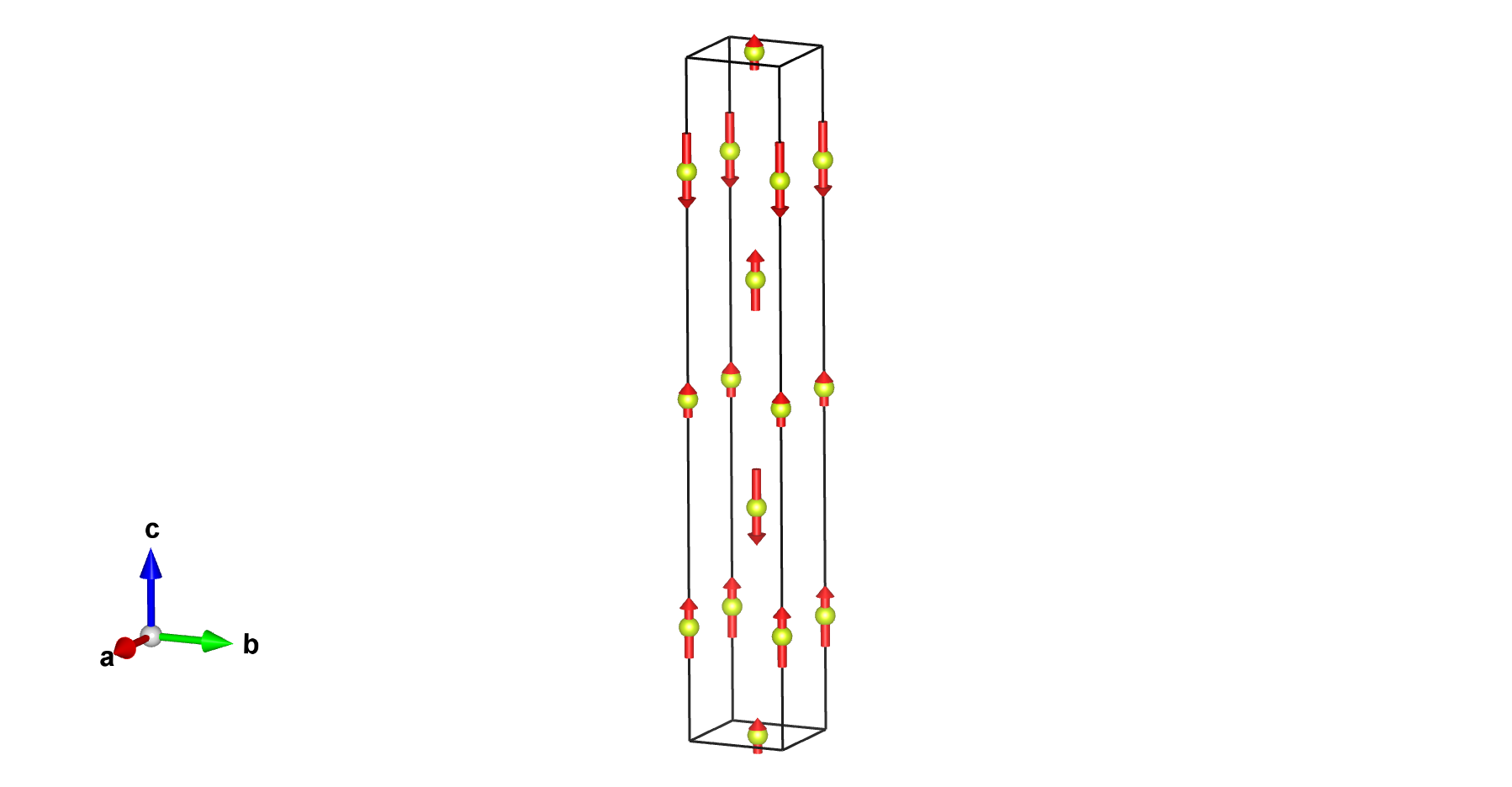

Magnetic structure with only magnetic atoms

Reference: V.K. Anand, A.D. Hillier, D.T. Adroja, D.D. Khalyavin, P. Manuel, G. Andre, S. Rols and M.M. Koza, Physical Review B (2018) 97 184422.
DOI: 10.1103/physrevb.97.184422
Atomic positions from: ICSD #161868

Parent space group (paramagnetic phase): I4mm (#107)
Propagation vector: k1 (0, 0, 2/3)

Transition Temperature: 4.7 K
Experiment Temperature: 1.5 K

Lattice parameters of the magnetic unit cell:
4.401 4.401 30.072 90.00 90.00 90.00
Transformation from parent structure: (a,b,3c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: I4m'm' (#107.231) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 4m'm' (13.4.47)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|

    [Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:
Irrep decomposition via

labeldim. full irrepdim. small irrepdirectionactionnumber of modespresence
mLD4LE4 2 1 general primary 2
mGM4 1 1 secondary 1 no

Comments (symmetry):
